Selector Lever Cable - 1.5L EcoBoost (118kW/160PS) - I4: Removal

WARNING: This page is about a different variant/trim than selected.

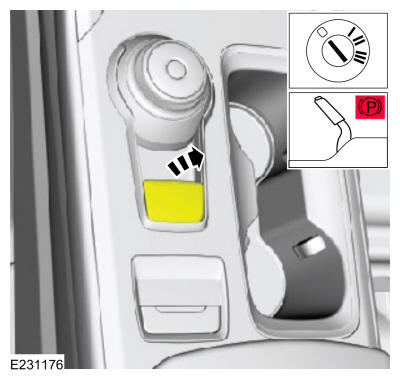

Turn the ignition switch to the OFF position and apply the parking brake.

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner. Refer to: Air Cleaner .
Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

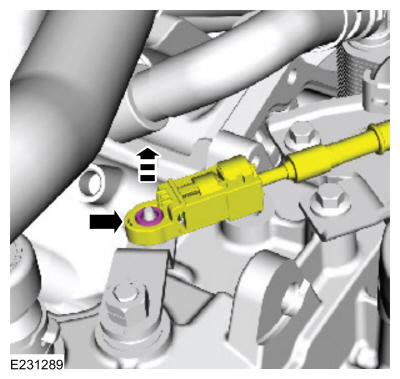

Disconnect the selector lever cable from the transmission manual lever.

Courtesy of FORD MOTOR COMPANY
Remove the selector cable retaining clip bolt.

Courtesy of FORD MOTOR COMPANY
Release the clip and detach the selector lever cable from the selector lever cable bracket.

Courtesy of FORD MOTOR COMPANY
Remove the selector lever cable nut.

Courtesy of FORD MOTOR COMPANY
Detach the selector lever cable retainer.

Courtesy of FORD MOTOR COMPANY
Remove the RH fender splash shield. Refer to: Fender Splash Shield .
Detach the selector lever cable from the TRCM lever.

Courtesy of FORD MOTOR COMPANY
Remove the selector lever cable retaining clip bolt.

Courtesy of FORD MOTOR COMPANY
Release the tab and detach the selector lever cable from the selector lever cable bracket.

Courtesy of FORD MOTOR COMPANY
Remove the selector lever cable.

Courtesy of FORD MOTOR COMPANY
