Gear Shift Module (GSM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: It is not necessary to carry out a PMI when installing a new GSM unless specifically instructed to do so in a TSB, GSB, FSA or SSM.

NOTE: Removal steps in this procedure may contain installation details.

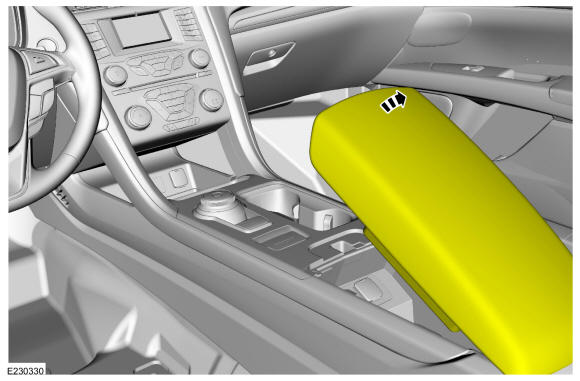

Open the floor console stowage bin lid.

Courtesy of FORD MOTOR COMPANY
On both sides. Release the clips and remove the floor console upper side finish panels.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the clips and remove the floor console upper trim panel.
- Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

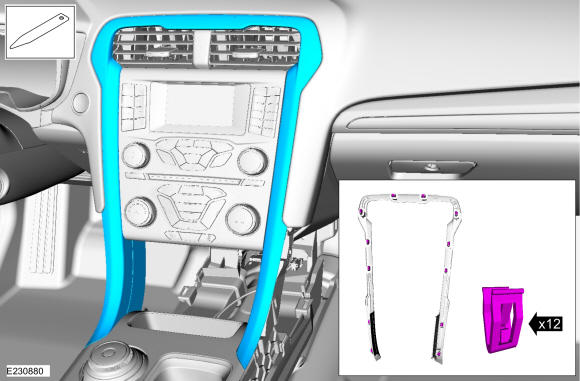

Release the clips and remove the center stack trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

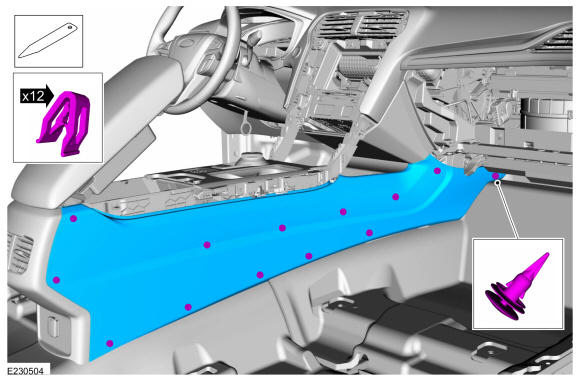

On both sides. Remove both console side trim panels. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the clips and position the floor console upper support to access the GSM.

Courtesy of FORD MOTOR COMPANY

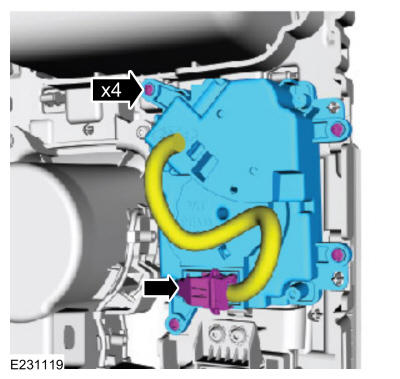

Disconnect the electrical connector, remove the screws and remove the GSM.
