Brake Shift Interlock Override Switch: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

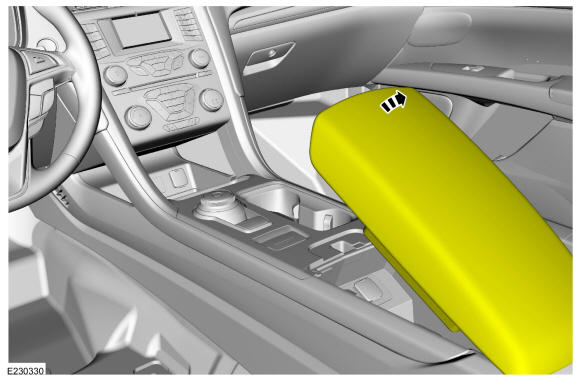

- Open the floor console stowage bin lid.

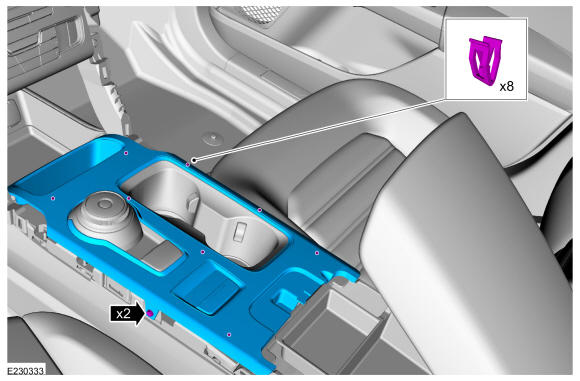

- On both sides. Release the clips and remove the floor console upper side finish panels.

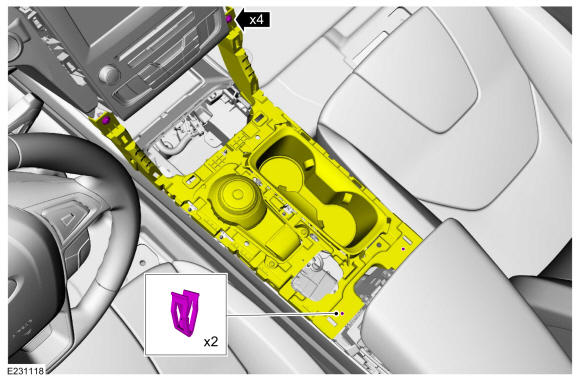

- Release the clips and remove the instrument panel center finish panel.
- Remove the screws, release the clips and remove the floor console upper finish panel.
- Remove the screws, release the clips and position the floor console upper support to access the brake shift interlock override switch.

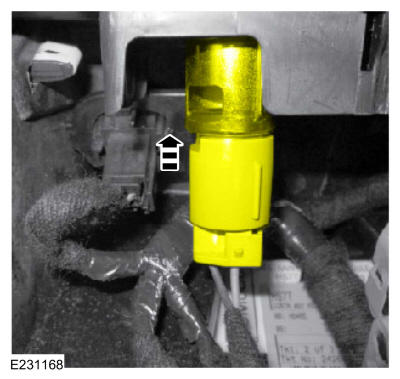

- Detach the power point from the console panel to access the brake shift interlock override switch.

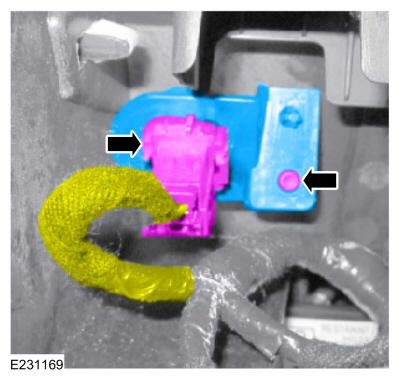

- Disconnect the electrical connector, remove the bolt and remove the brake shift interlock override switch.
