Component Description: TRCM
WARNING: This page is about a different variant/trim than selected.
The shift by wire system uses the driver's seatbelt buckle as one of several inputs used to determine driver presence. If the buckle is deemed faulted for any reason the system reads this as "unbuckled" so that any time the door transitions to "open" below a set speed the TRCM is commanded to return to park.

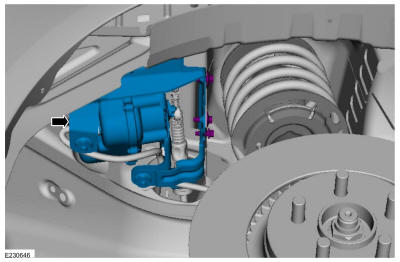

TRCM
The TRCM actuates the shift cable in place of a conventional selector lever. It receives commands from the PCM and GSM via High Speed CAN. The shift cable connects the TRCM to the transmission manual lever.
