Fuel Rail: Removal

WARNING: This page is about a different variant/trim than selected.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery. Refer to: Battery Disconnect and Connect .
Remove the Ignition Coil-On-Plugs. Refer to: Ignition Coil-On-Plug .
Detach the wiring harness retainers and disconnect the FRP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: To release the fuel pressure in the high pressure fuel tube, wrap the high pressure fuel pump flare nut with a shop towel to absorb any residual fuel pressure during the loosening of high pressure fuel pump flare nut.

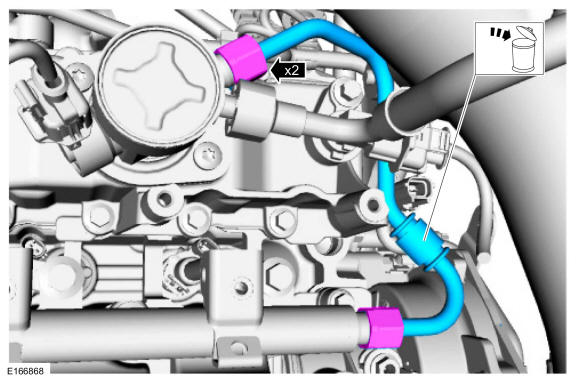

Disconnect the high-pressure fuel tube flare nuts. Remove and discard the high-pressure fuel tube.

Courtesy of FORD MOTOR COMPANY
NOTE: Pull out the fuel rail in the direction of the fuel injector axis or damage may occur to the fuel injectors.

NOTE: Use compressed air to remove any dirt or foreign material from the cylinder head, the block and the general surrounding area of the fuel rail and the fuel injectors.

NOTE: When removing the fuel rails, the fuel injectors may remain in the cylinder head and require the use of a Fuel Injector Remover tool to extract. Wiggling the fuel injector by hand to break it loose may allow the fuel injector to be removed by hand.

NOTE: Should any of the fuel injectors remain in the head, then the fuel injector electrical connectors will need to be disconnected as the fuel rail is being removed.

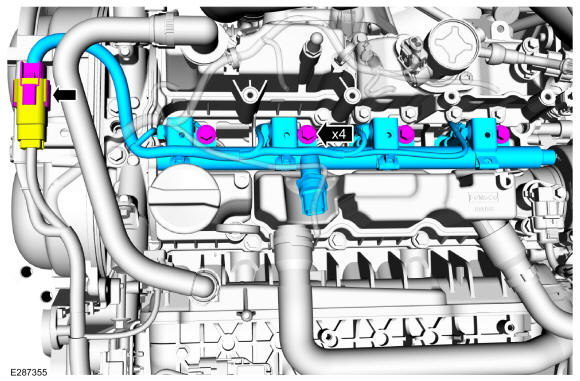

Disconnect the fuel injector main wire harness electrical connector, remove the fuel rail bolts, then remove the fuel rail.

Courtesy of FORD MOTOR COMPANY
Disconnect the fuel injector electrical connectors, then remove the fuel injectors from the fuel rail.

Courtesy of FORD MOTOR COMPANY
NOTE: Use minimal force to remove the fuel injectors that remained in the cylinder head with the Fuel Injector Remover tool or damage to the fuel injector assembly may occur. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.

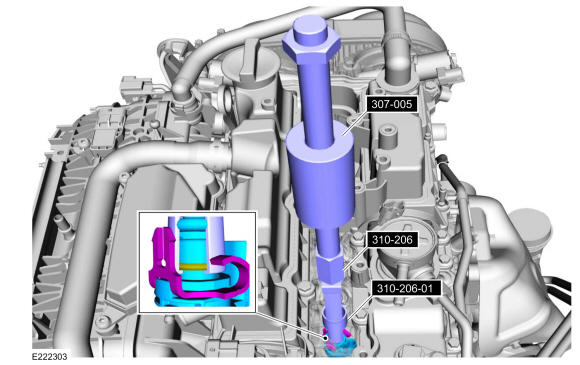

Remove any of the fuel injectors that remained in the cylinder head. Install the special tool 310-206 below the lip on the upper fuel injector body as pictured. Push the adapter tool 310-206-01 all of the way down to grip the fuel injector tightly, in order to keep the tool from slipping off of the fuel injector. Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer, 310-206 Remover, Fuel Injector, 310-206-01 Adapter for 310-206.

Courtesy of FORD MOTOR COMPANY

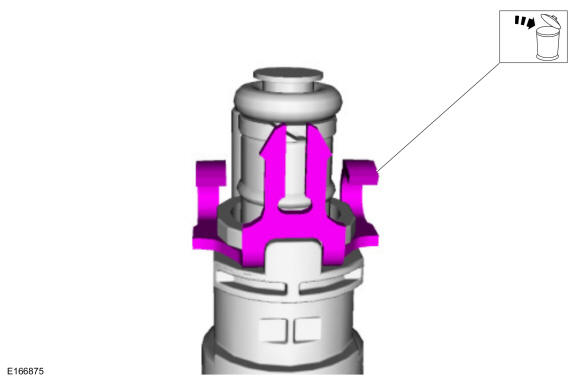

Remove and discard the fuel injector clips.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use compressed air to clean the tip of the fuel injector.

NOTE: Do not use a brush to clean the tip of the fuel injector.

NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.

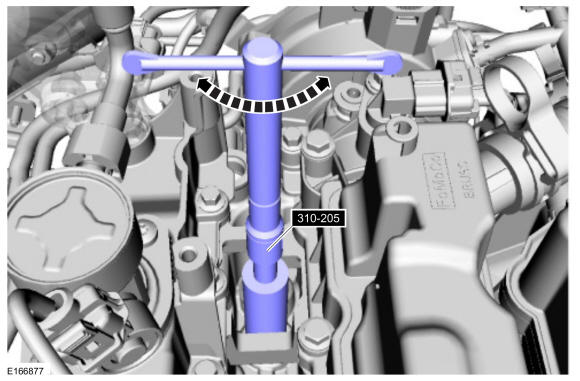

Using the special tool, clean the cylinder head fuel injector bores. Use Special Service Tool: 310-205 Fuel Injector Brush.

Courtesy of FORD MOTOR COMPANY
