Fuel Pump Driver Module (FPDM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: The fuel pump driver module is located behind the left C-pillar lower trim panel.

Remove the left C-pillar lower trim panel. Refer to: C-Pillar Lower Trim Panel .

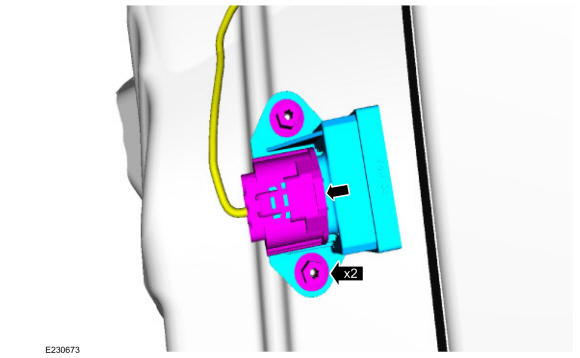

- Disconnect the fuel pump driver module electrical connector.
- Remove the fuel pump driver module retaining nuts, then remove the fuel pump driver module.
