1.5L EcoBoost

WARNING: This page is about a different variant/trim than selected.

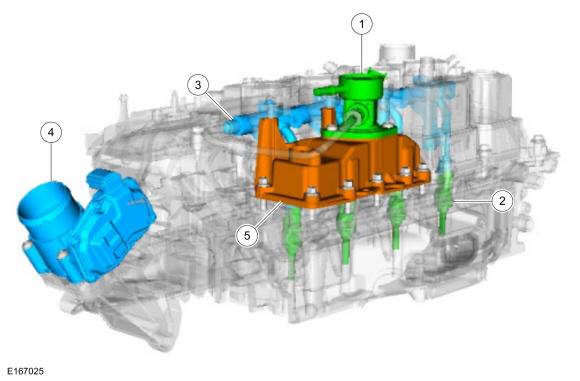

GFD481736Courtesy of FORD MOTOR COMPANY
Item Description
1 High-pressure fuel pump
2 Fuel injector
3 Fuel rail
4 Throttle Body (TB)
5 High-pressure fuel pump mounting bracket
