Valve Cover: Installation

WARNING: This page is about a different variant/trim than selected.

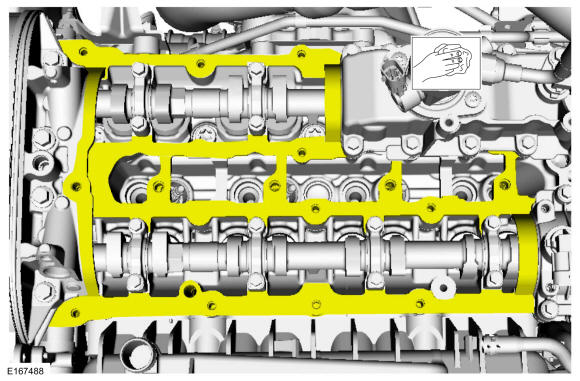

  1. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    GFD479609Courtesy of FORD MOTOR COMPANY

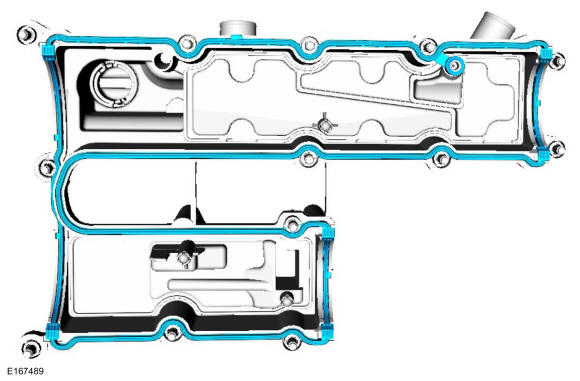

  2. Install the new valve cover gasket.
    GFD479610Courtesy of FORD MOTOR COMPANY

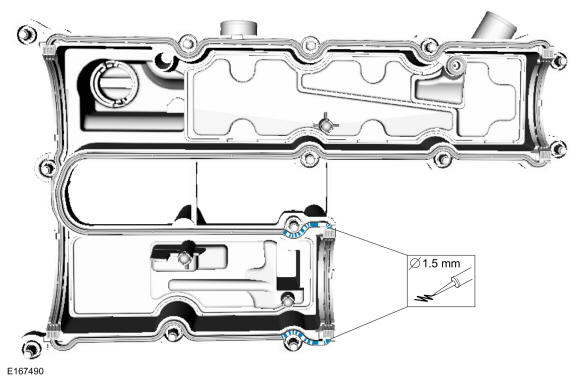

  3. NOTE: The components must be installed within 5 minutes of applying the sealant.

    Apply a 1.5 mm (0.059 in) beads of gasket maker as shown.

    Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

    GFD479611Courtesy of FORD MOTOR COMPANY

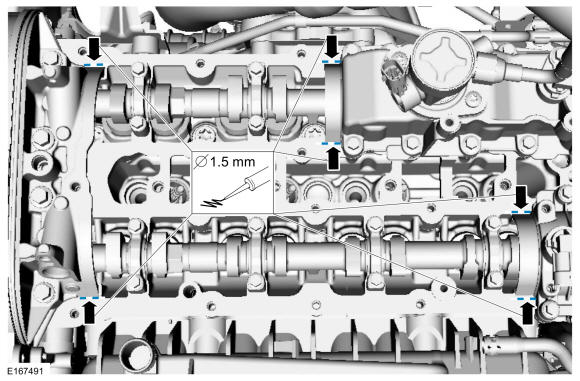

  4. Apply a 1.5 mm (0.059 in) beads of gasket maker as shown.

    Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

    GFD479612Courtesy of FORD MOTOR COMPANY

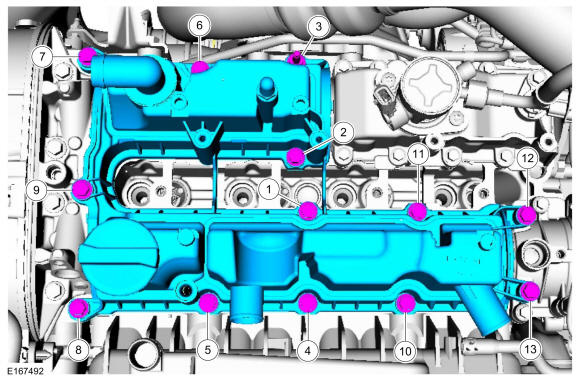

  5. Install the valve cover and the bolts in sequence shown in 3 stages.

    Torque: Stage 1: 44 lb.in (5 Nm), Stage 2: 80 lb.in (9 Nm), Stage 3: 89 lb.in (10 Nm)

    Fig 1: Valve Cover Bolts Tightening Sequence
    GFD479613Courtesy of FORD MOTOR COMPANY
  6. NOTE: The O-ring seals are to be reused unless damaged.

    Lubricate the VCT oil control solenoid O-ring seal.

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

    GFD479614Courtesy of FORD MOTOR COMPANY

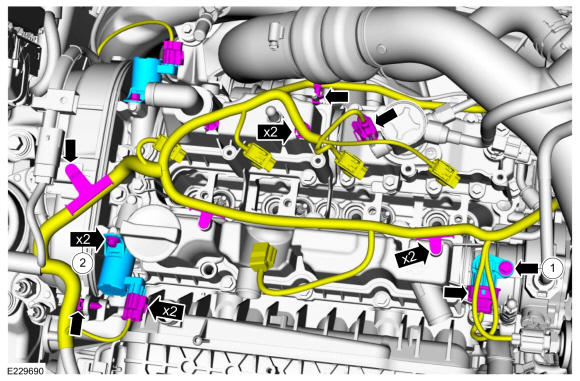

  7. NOTE: Note the position of the VCT oil control solenoids before removal.

    1. Install the intake CMP sensor and the bolt.

      Torque: 80 lb.in (9 Nm)

    2. Install the VCT oil control solenoids and the bolts.

      Torque: 71 lb.in (8 Nm)

    • Attach the wiring harness retainers and connect the wiring harness electrical connectors.

    GFD479615Courtesy of FORD MOTOR COMPANY
  8. Install the fuel rail. Refer to: Fuel Rail .

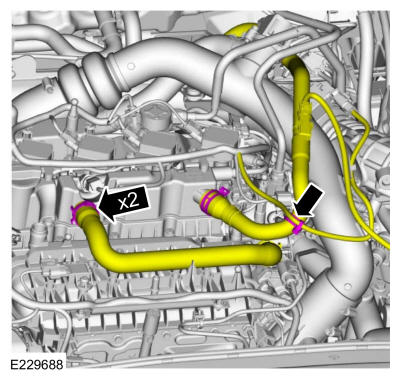

    • Position the hoses and release the clamps. Use the General Equipment: Hose Clamp Remover/Installer

    • Attach the wiring harness retainer to the hose.

    GFD479604Courtesy of FORD MOTOR COMPANY

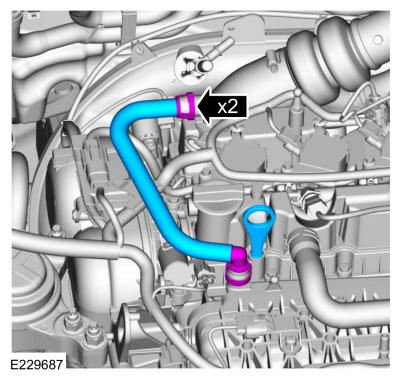

    • Install the hose and connect the couplings.

    • Install the oil level indicator.

    GFD479603Courtesy of FORD MOTOR COMPANY

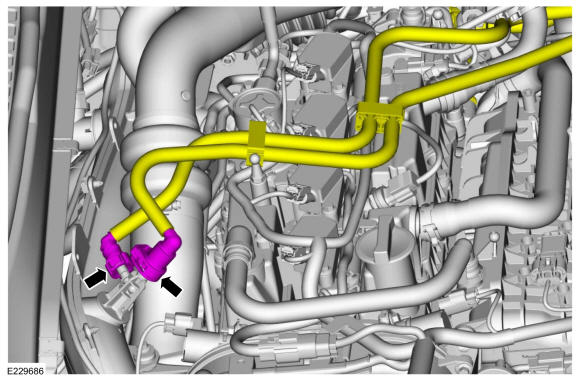

  9. Connect the EVAP canister purge valve tubes to the TC inlet pipe.
    GFD479602Courtesy of FORD MOTOR COMPANY
  10. Install the engine appearance cover.
GFD479509Courtesy of FORD MOTOR COMPANY
