Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the crankshaft front seal. Refer to: Crankshaft Front Seal .

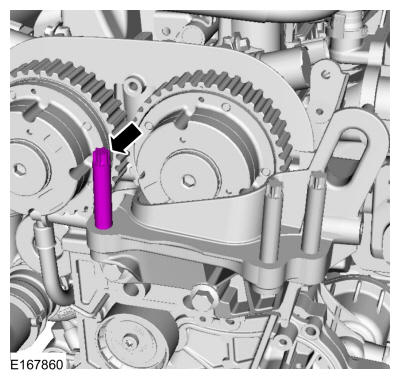

Remove Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

Courtesy of FORD MOTOR COMPANY
NOTE: There are different length of bolts noted in removal.

NOTE: Install the engine mount bracket to support the engine during oil pan removal.

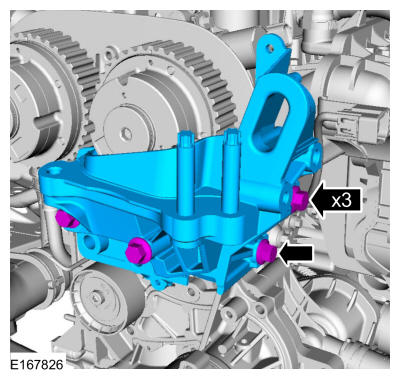

Install the engine mount support bracket and the bolts.

Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
Install the engine mount stud.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Install engine mount to support the engine during oil pan removal.

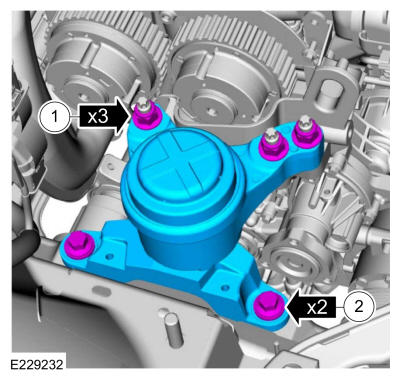

Install the engine mount, nuts and the bolts.

Torque: 1: 85 lb.ft (115 Nm) 2: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the oil pan. Refer to: Oil Pan .
Remove the bolts and the oil pump screen and pickup tube.

Courtesy of FORD MOTOR COMPANY

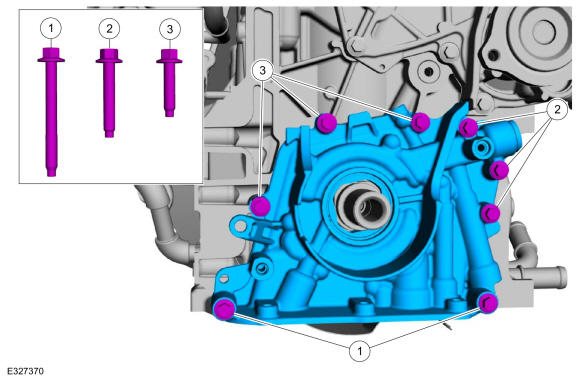

NOTE: Note the position of the 3 different lengths of the bolts for installation.
1. Remove the two M6 x 55 mm bolts.
2. Remove the three M6 x 35 mm bolts.
3. Remove the three M6 x 25 mm bolts and remove the oil pump.
Courtesy of FORD MOTOR COMPANY

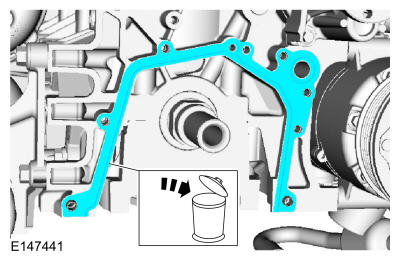

Remove and discard the oil pump gasket.

Courtesy of FORD MOTOR COMPANY

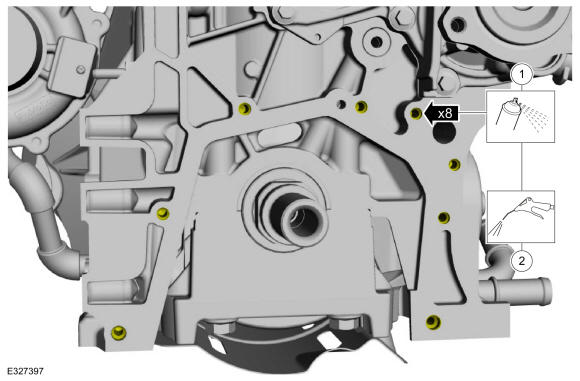

1. Clean the bolt holes for the oil pump with Motorcraft® Metal Brake Parts Cleaner to remove all residual oil.
  Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
2. Use compressed air to remove any brake clean or oil in the oil pump bolt holes.

Courtesy of FORD MOTOR COMPANY
