Oil Pump: Installation
WARNING: This page is about a different variant/trim than selected.

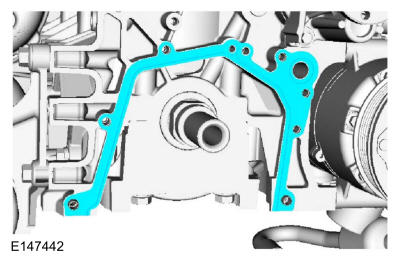

- Install the new oil pump gasket.
-
NOTE: Make sure that the locating dowels remain installed.
Inspect the oil pump locating dowels for damage and correct installation.
- Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
-
NOTE: Only tighten the bolts finger tight at this stage.

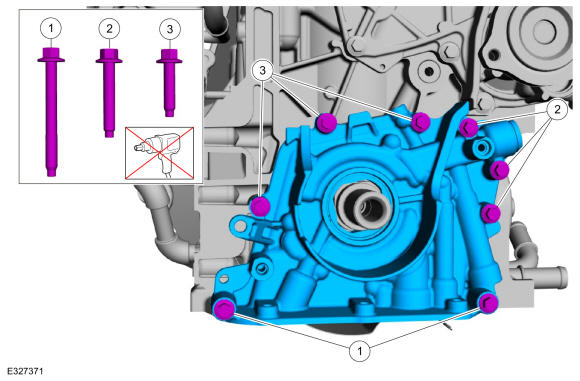

Install the oil pump and follow the steps below. Hand start the bolts.
- Install the two M6 x 1.00 x 55.0 bolts finger tight.
- Install the three M6 x 1.00 x 35.0 bolts finger tight.
- Install the three M6 x 25 bolts finger tight.

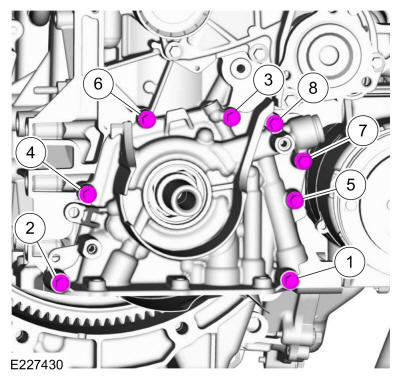

- Tighten the oil pump bolts in sequence shown in 2 stages.
Torque: Stage 1: Tighten bolts 1, 2, 3 and 6: 18 lb.in (2 Nm) | Stage 2: Tighten bolts 1 through 8: 97 lb.in (11 Nm)
-
NOTE: The O-ring seal is to be reused unless damaged.
Inspect the oil pump screen and pickup tube O-ring seal.
- Install the oil pump screen and pickup tube and the bolts.
Torque: 84 lb.in (9.5 Nm)
- Install the oil pan. Refer to: Oil Pan .

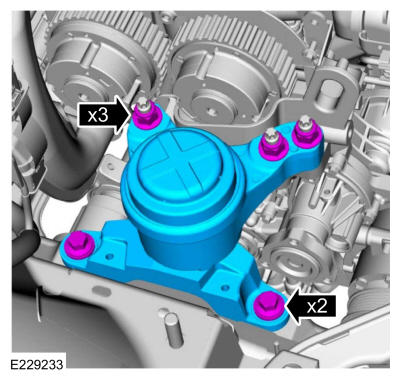

- Remove the bolts, nuts and the engine mount.
- Remove the engine mount stud.
-
NOTE: Note the different lengths of the bolts for installation.
Remove the bolts and the engine mount bracket.
- Install Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.
- Install the crankshaft front seal. Refer to: Crankshaft Front Seal .
