Intake Manifold: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Remove the following items:
1. Remove the air cleaner. Refer to: Air Cleaner .
2. Remove the upper air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
3. Remove the EVAP canister purge valve. Refer to: Evaporative Emission Canister Purge Valve .
4. Remove the charge air cooler. Refer to: Charge Air Cooler (CAC) .
5. Remove the generator. Refer to: Generator - 1.5L EcoBoost (118kW/160PS) - I4 .

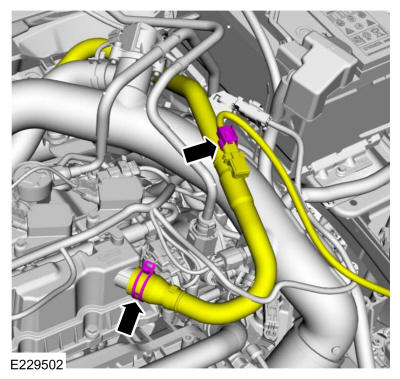

- Disconnect the crankcase pressure sensor wiring harness electrical connector.
- Release the clamps and position the crankcase vent tube aside. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

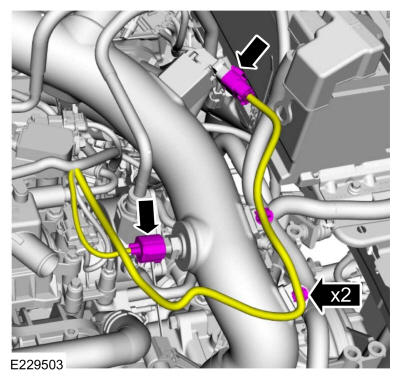

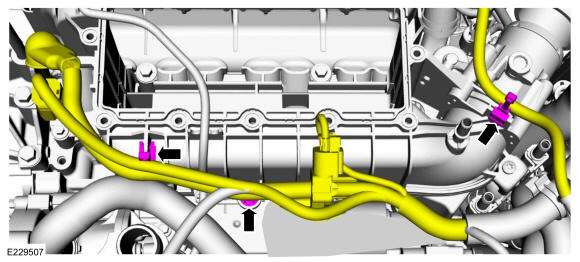

Disconnect the wiring harness electrical connectors and retainer.

Courtesy of FORD MOTOR COMPANY

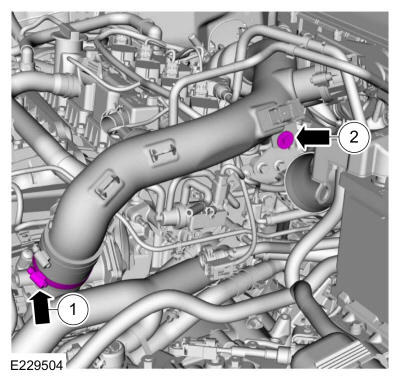

1. Loosen the CAC intake pipe clamp.
2. Remove the CAC intake pipe bolt.
Courtesy of FORD MOTOR COMPANY

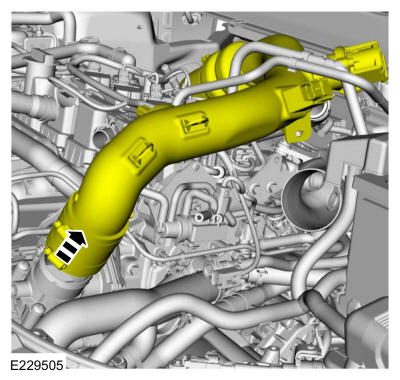

Position the CAC intake pipe off the throttle body.

Courtesy of FORD MOTOR COMPANY

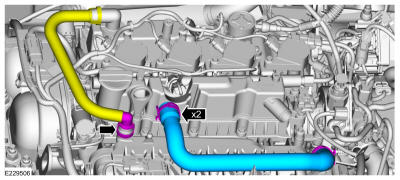

- Disconnect and position the vent tube aside.
- Release the clamps and remove the hose. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

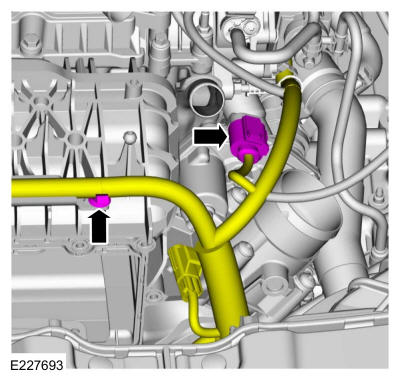

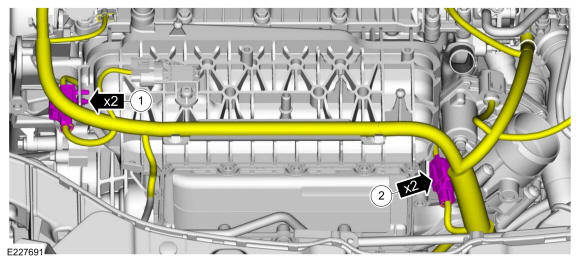

1. Detach the (KS) knock sensors.
2. Disconnect the (KS) knock sensors.
Courtesy of FORD MOTOR COMPANY

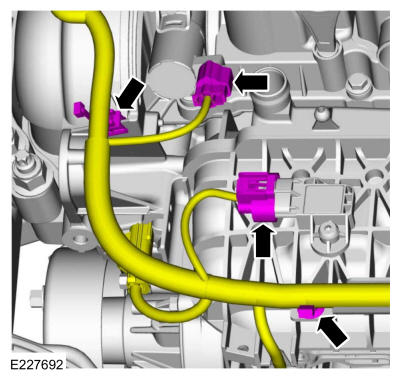

Disconnect the electrical connectors and the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

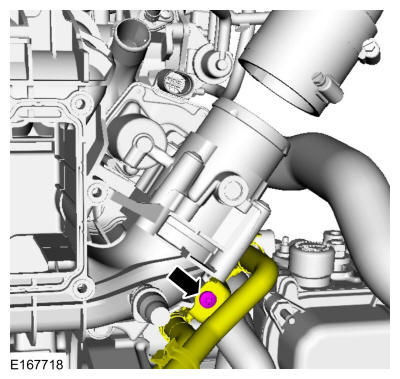

Disconnect the throttle body electrical connector and the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
Detach the wiring harness retainers and position the wire harness aside.

Courtesy of FORD MOTOR COMPANY

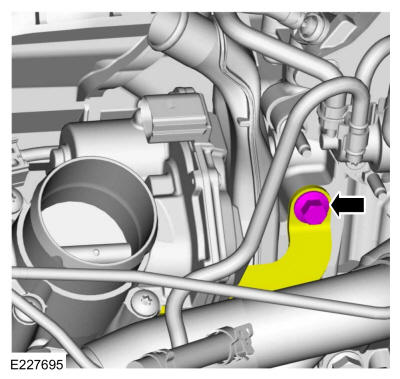

Remove the intake manifold support bracket bolt.

Courtesy of FORD MOTOR COMPANY
Remove the retainer and position the vacuum tube aside.

Courtesy of FORD MOTOR COMPANY

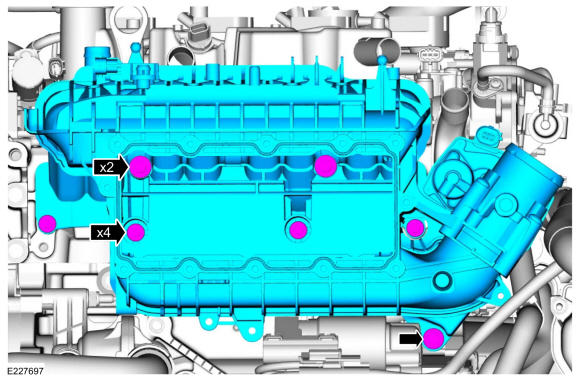

NOTE: The bolts remain captured in the intake manifold.

Loosen the bolts and remove the intake manifold.

Courtesy of FORD MOTOR COMPANY
