Engine Mount: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

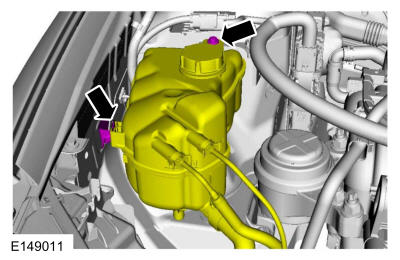

- Release the tab, remove the retainer and position the degas bottle aside.
- Remove the retainers and the engine undershield.
- Install the following items:

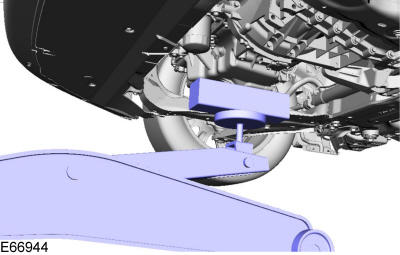

- Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

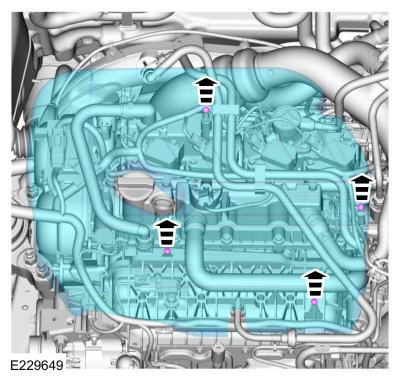

- Remove the engine appearance cover.
-

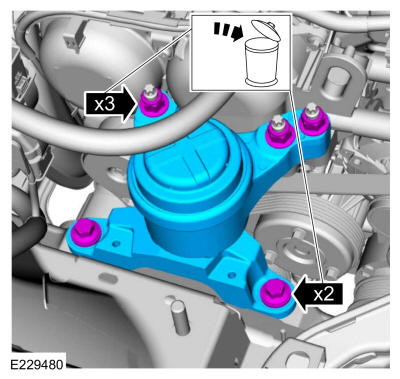

- Remove the bolts, nuts and the engine mount.
- Discard the nuts and bolts.
