Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.

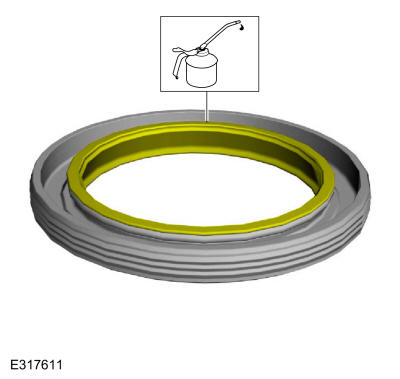

With clean engine oil, lubricate the lip of the crankshaft front seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the mating faces are clean and free of foreign material.

NOTE: Click below to view a video version of installing the crankshaft front seal.
multimedia:A supplement to the article is available.

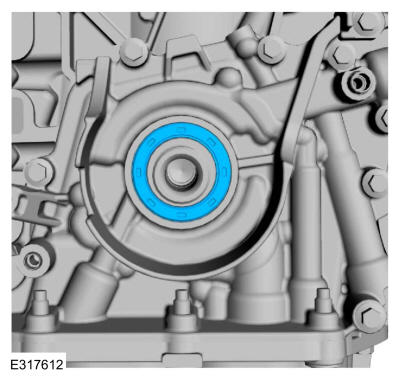

View - English With the seal slightly angled, carefully place the seal lip against the crankshaft sealing surface. Apply lateral pressure and "walk" the seal lip around the remaining circumference.

Courtesy of FORD MOTOR COMPANY

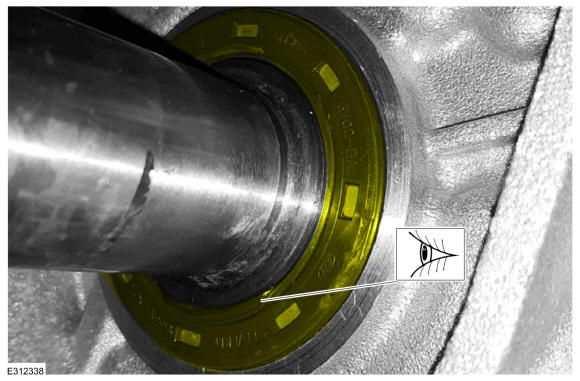

- Inspect the crankshaft front seal.
- NOTE: If the crankshaft front seal is rolled during positioning, do not use the special tool to install or an oil leak will occur.

  If any part of the crankshaft front seal inner lip is rolled, remove and reposition the seal. Also make sure the seal spring is properly positioned on the seal.
Courtesy of FORD MOTOR COMPANY

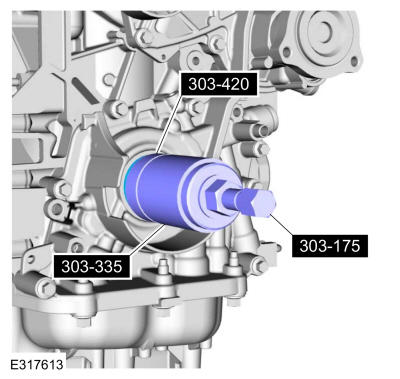

Using the special tools, seat the new crankshaft front seal. Use Special Service Tool: 303-175 (T82L-6316-A) Installer, Crankshaft Vibration Damper., 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-420 (T92P-6701-BH) Installer, Crankshaft Front Oil Seal.

Courtesy of FORD MOTOR COMPANY
Install the timing belt. Refer to: Timing Belt .
