Camshaft Seal: Installation
WARNING: This page is about a different variant/trim than selected.

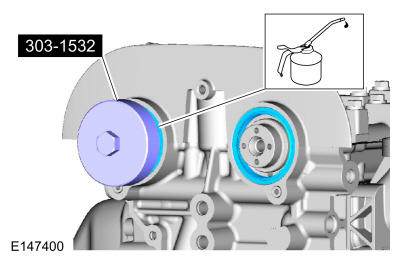

- Using the special tool, install the new camshaft seals. Use Special Service Tool: 303-1532 Installer, Camshaft Seal.
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
- Install the VCT unit. Refer to: Variable Camshaft Timing (VCT) Unit .
