Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different variant/trim than selected.

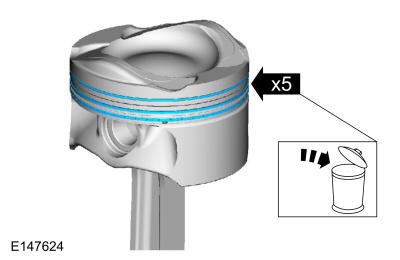

Remove and discard the piston rings.

Courtesy of FORD MOTOR COMPANY

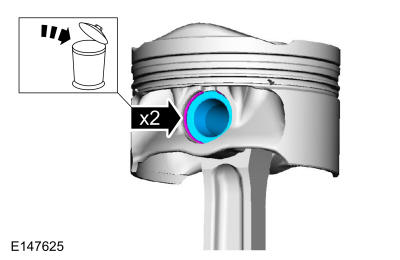

- Remove and discard the piston pin retainers.
- Remove the piston pin.
Courtesy of FORD MOTOR COMPANY
Remove the piston from the connecting rod.

Courtesy of FORD MOTOR COMPANY

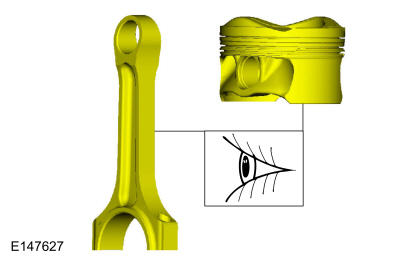

Inspect the piston and connecting rod. Refer to: Piston Inspection .

Courtesy of FORD MOTOR COMPANY
