Steering Wheel: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Removal steps in this procedure may contain installation details.

Remove the driver airbag. Refer to: Driver Airbag .

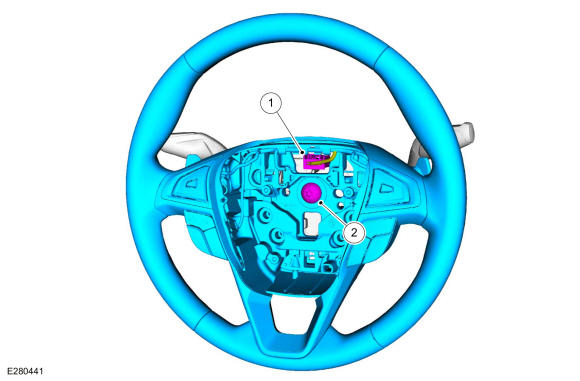

1. Disconnect the electrical connector.
2. Remove the bolt and the steering wheel.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the clockspring rotor does not rotate.

NOTE: Make sure the clockspring pins are not bent or damaged.

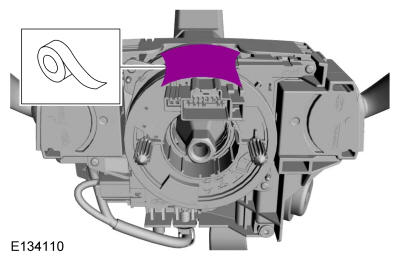

Tape the clockspring rotor to the outer housing to keep it from rotating.

Courtesy of FORD MOTOR COMPANY
