Steering Column: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Precise tolerances are required when manufacturing a steering column. Never install a repaired, rebuilt, aftermarket, or remanufactured steering column. Always install a new steering column. Failure to follow this direction can result in steering column failure.

NOTE: Manual column shown, power column similar.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

If a SRS fault is present, continue to Step 2. Otherwise, turn the ignition off, wait at least one minute and continue to Step 3.
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
NOTE: This step is only necessary when installing a new component.

Remove the SCCM. Refer to: Steering Column Control Module (SCCM) .
NOTE: This step is not necessary when installing a new component.

Remove the steering column shrouds. Refer to: Steering Column Shrouds .
NOTE: Make sure that the steering wheel does not rotate or damage to the clockspring may occur.

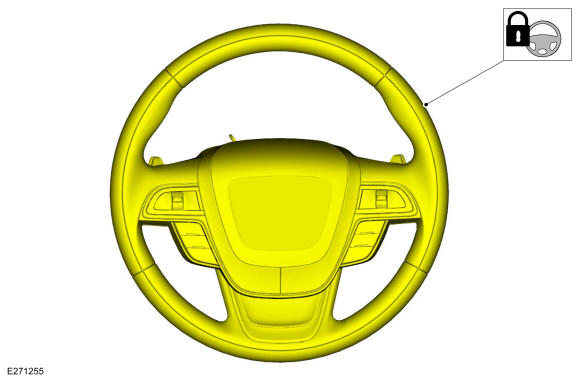

Secure the steering wheel.

Courtesy of FORD MOTOR COMPANY

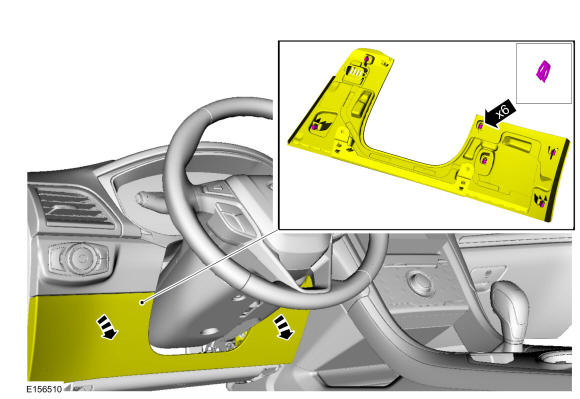

Release the clips and position aside the instrument panel finish panel.

Courtesy of FORD MOTOR COMPANY

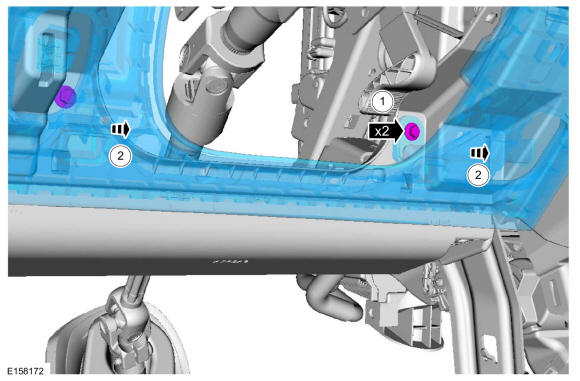

Remove the bolts and the instrument panel finish panel.

Courtesy of FORD MOTOR COMPANY

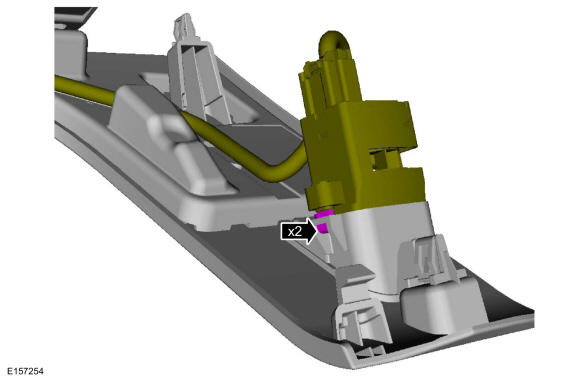

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

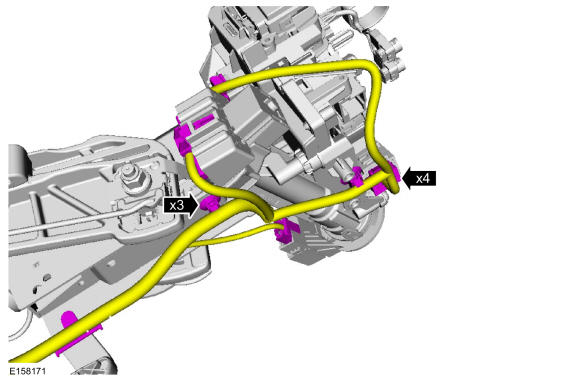

Detach the retainers and disconnect the steering column electrical connectors.

Courtesy of FORD MOTOR COMPANY

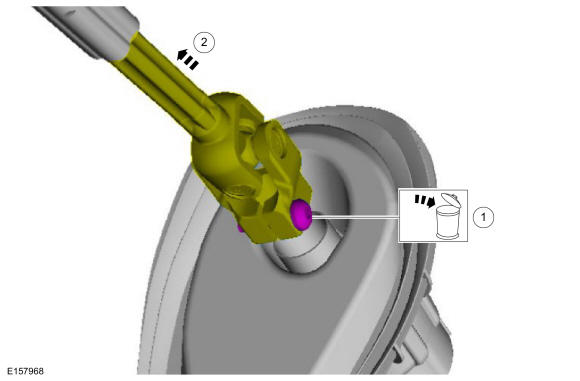

1. Remove and discard the bolt.
  Torque: 18 lb.ft (25 Nm)
2. Position aside the upper shaft from the lower shaft.
Courtesy of FORD MOTOR COMPANY

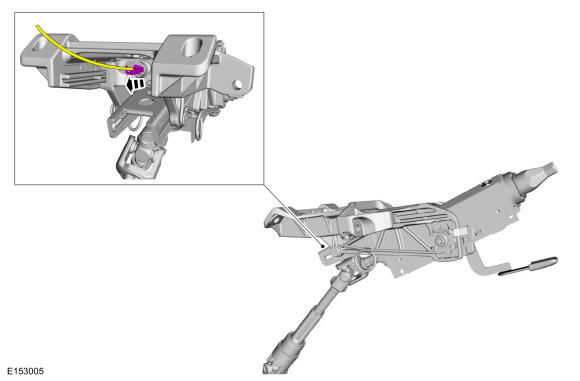

NOTE: The deployable steering column electrical connector retaining tabs are not easily accessible. Using an inspection mirror and needle-nose pliers may help in viewing and releasing the electrical connector retaining tabs.

Depress the locking tabs and disconnect the collapsible steering column module electrical connector.

Courtesy of FORD MOTOR COMPANY

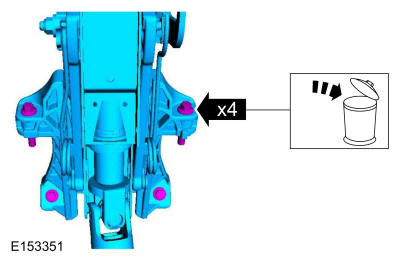

Remove and discard the bolts and remove the column.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
