Steering Column Tilt Motor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

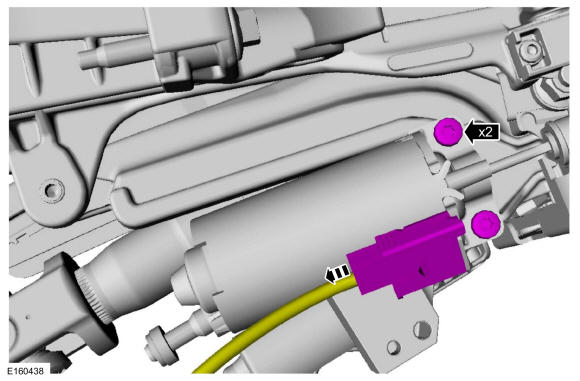

  2. Detach the tilt motor electrical connector and remove the screws.

    Torque: 27 lb.in (3 Nm)

    GFD479291Courtesy of FORD MOTOR COMPANY

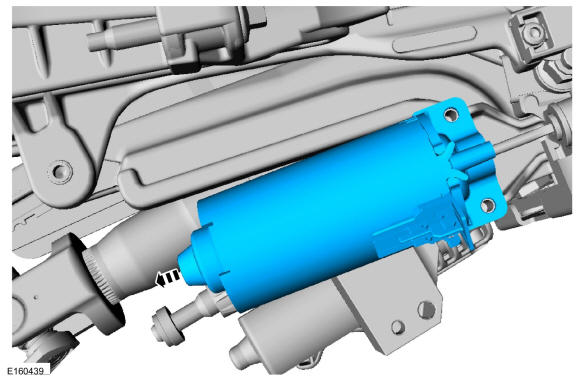

  3. Remove the tilt motor.
GFD479292Courtesy of FORD MOTOR COMPANY
