Accelerator Pedal: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
To prevent setting Diagnostic Trouble Codes (DTCs), make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.
-
WARNING: Before beginning any service procedure, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .

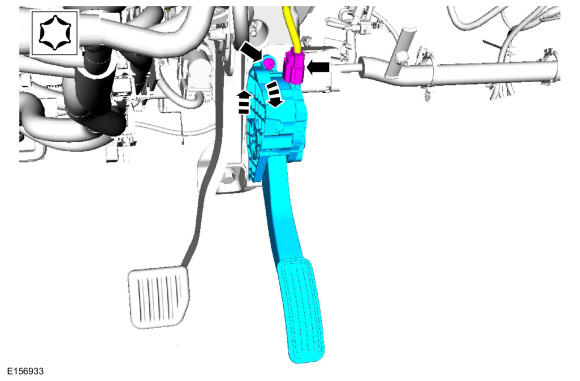

- Disconnect the accelerator pedal sensor electrical connector. Remove the bolt and the accelerator pedal assembly.
Torque
: 33 lb.in (3.7 Nm)
