Brake Vacuum Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

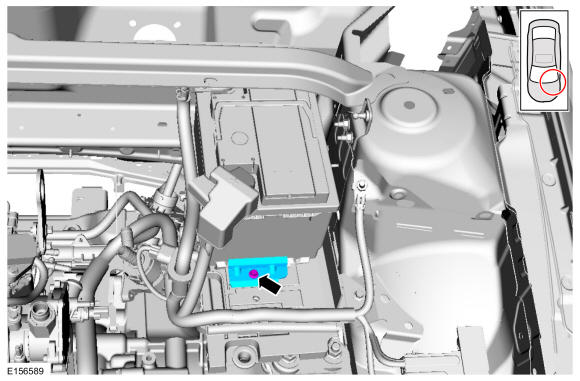

- Remove the battery hold down bolt and plate.
Torque
: 89 lb.in (10 Nm)
 Courtesy of FORD MOTOR COMPANY
|

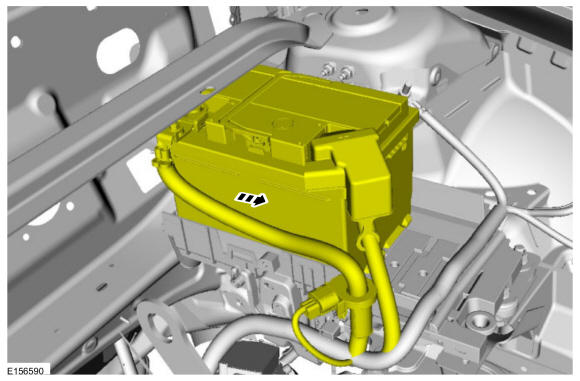

- Position the battery forward.
 Courtesy of FORD MOTOR COMPANY
|

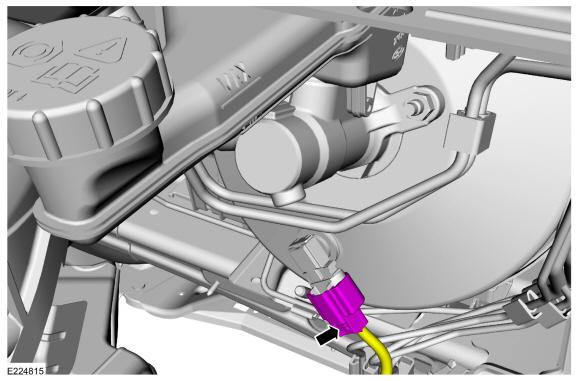

- Disconnect the brake vacuum sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

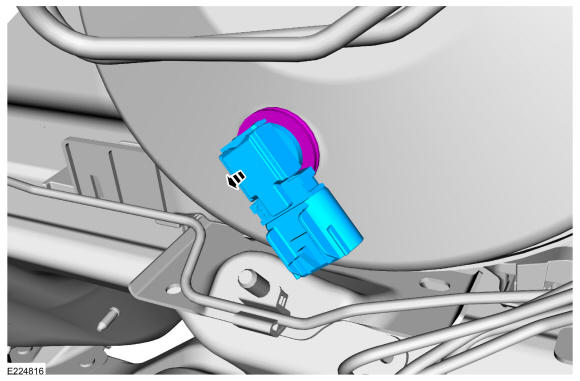

- Remove the brake vacuum sensor.
 Courtesy of FORD MOTOR COMPANY
|
