Brake Vacuum Pump - 2.7L EcoBoost (238kW/324PS): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

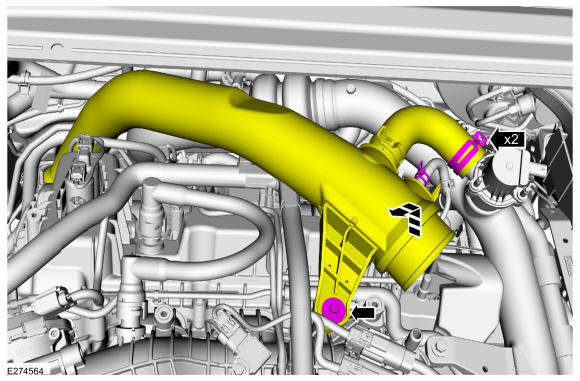

Remove the upper RH air cleaner outlet pipe.

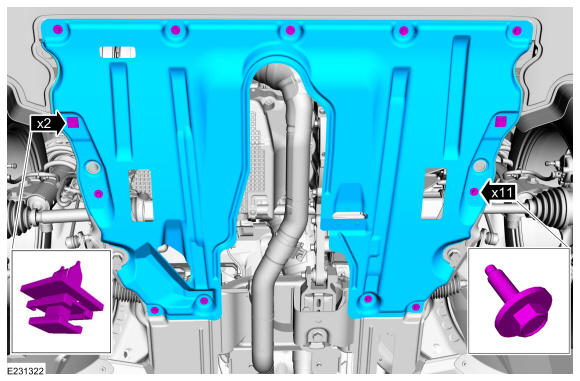

Remove the retainers and the engine undershield.

Courtesy of FORD MOTOR COMPANY

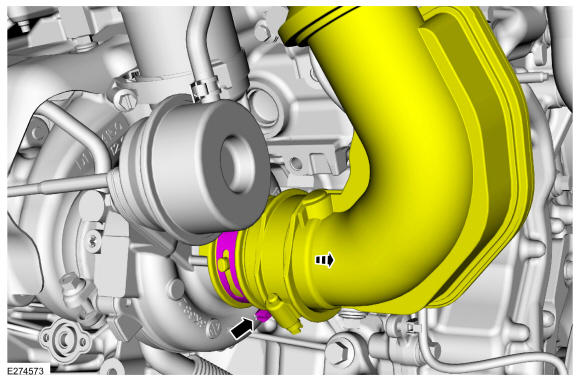

Loosen the clamp and position the lower RH air cleaner outlet pipe away from the turbocharger.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
oosen the clamp and position the lower RH air cleaner outlet pipe away from the turbocharger.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner outlet pipe LH.

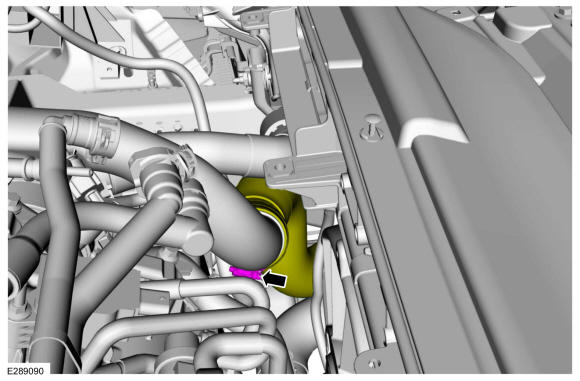

Loosen the clamp and position aside the CAC (charge air cooler) intake lower pipe RH.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Loosen the clamp and position aside the CAC (charge air cooler) intake lower pipe RH.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

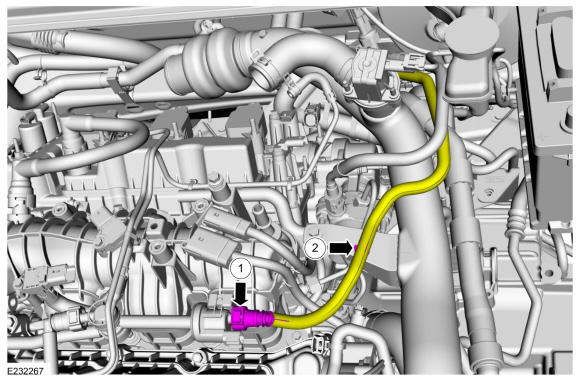

1. Disconnect the EVAP canister purge valve quick release coupling.
2. Detach the retainer and position the EVAP canister purge valve tube aside.
Courtesy of FORD MOTOR COMPANY

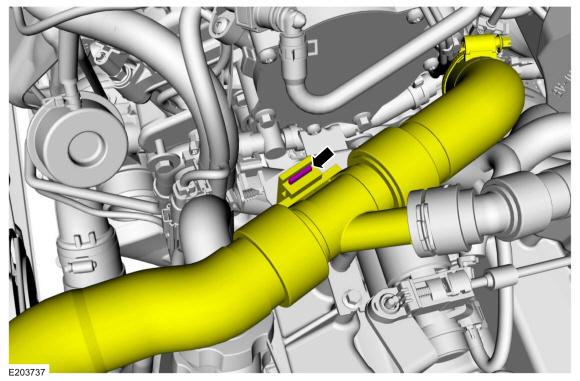

Detach the coolant hose from the starter motor bracket.

Courtesy of FORD MOTOR COMPANY

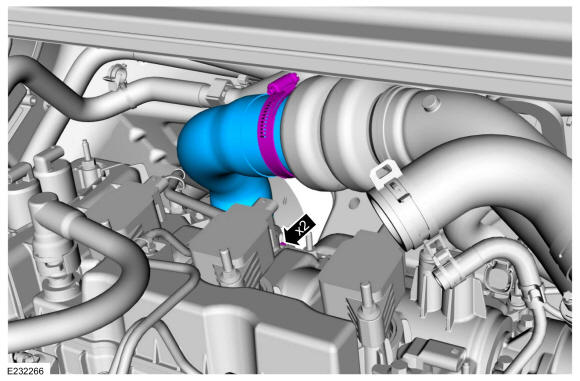

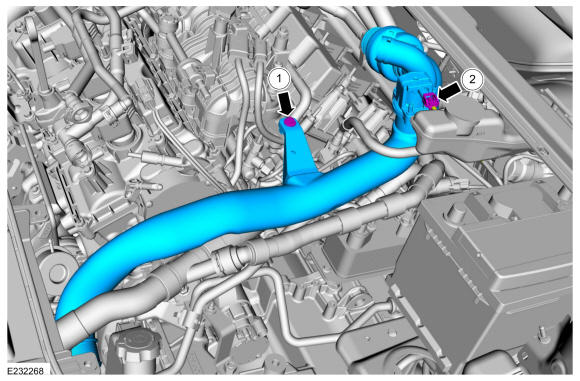

1. Remove the bolt.
  Torque

  : 71 lb.in (8 Nm)
2. Disconnect the bypass valve electrical connector and remove the CAC intake pipe RH.
Courtesy of FORD MOTOR COMPANY
Clean, inspect, and cover all open ports.

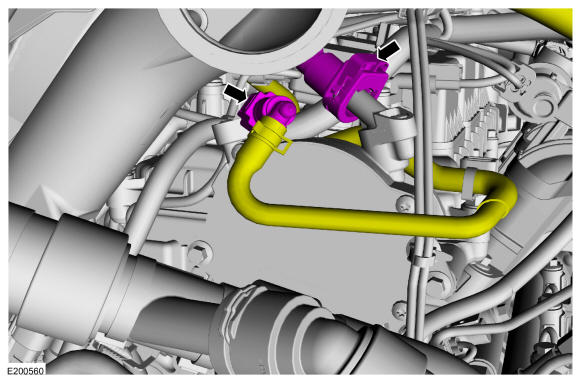

Disconnect the vacuum tubes.

Courtesy of FORD MOTOR COMPANY

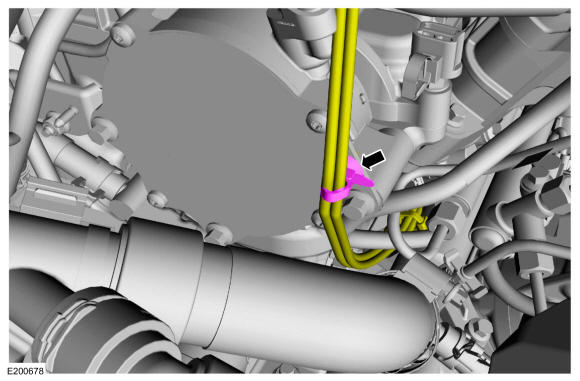

Detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY

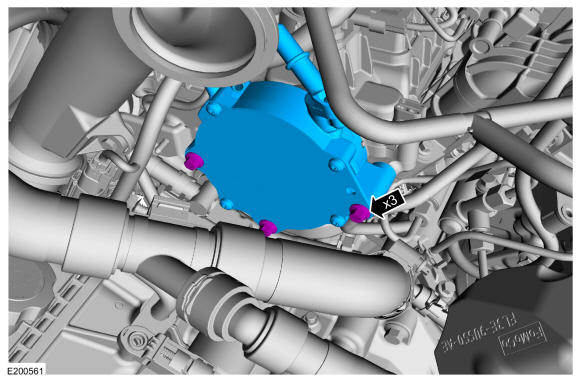

Remove the bolts and the vacuum pump.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
