Brake Vacuum Pump - 2.0L EcoBoost (184kW/250PS) - MI4: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

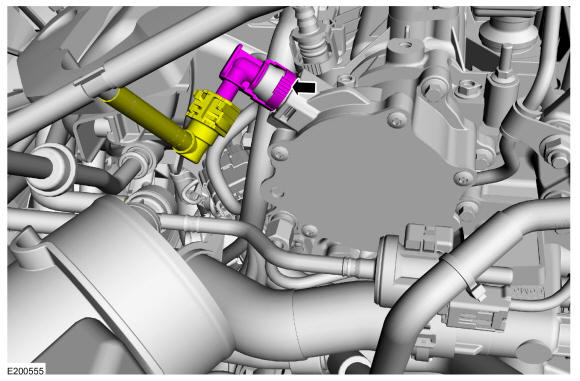

2. Squeeze the sides of the coupling and disconnect the vacuum tube.

   Courtesy of FORD MOTOR COMPANY

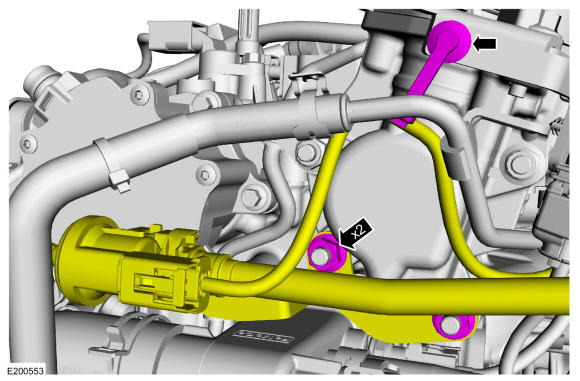

3. Detach the wiring retainer, remove the nuts and position the EVAP purge valve and bracket aside.

   Torque

   : 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

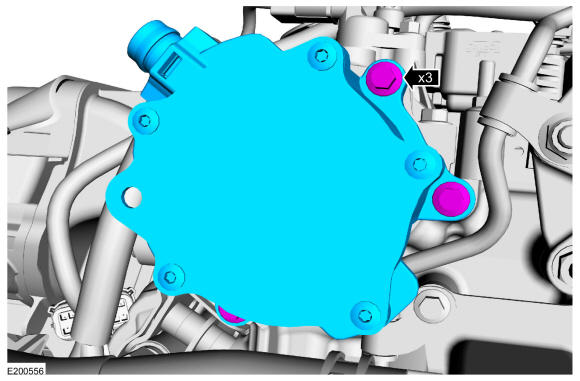

4. Remove the bolts and the brake vacuum pump.

   Torque

   : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
