Brake Vacuum Pump - 1.5L EcoBoost (118kW/160PS) - I4: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

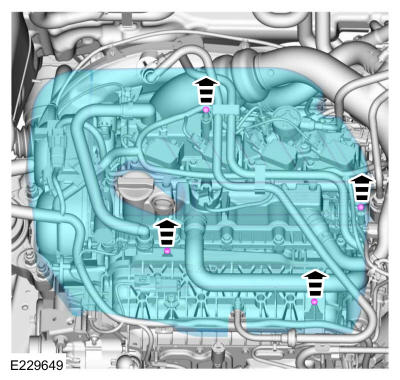

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
Remove the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .

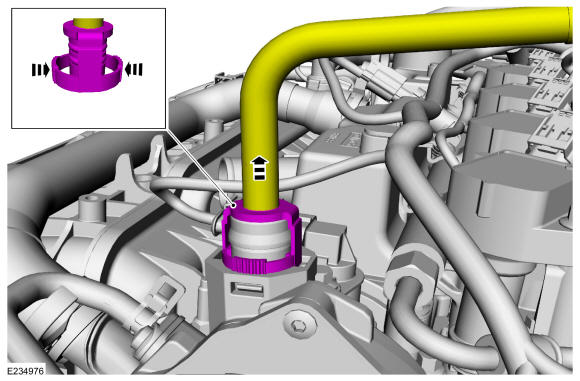

Squeeze the sides of the coupling and disconnect the vacuum tube.

Courtesy of FORD MOTOR COMPANY

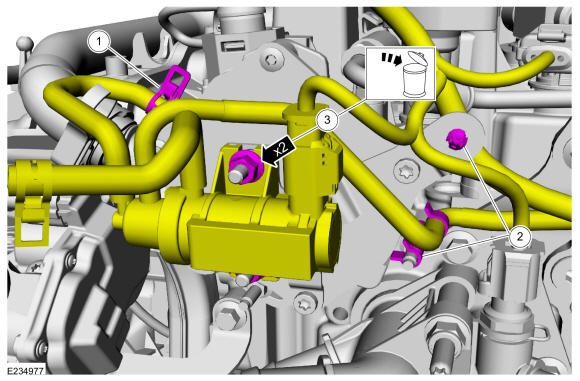

- Release the clamp and disconnect the vacuum hose.
- Detach the wiring and vacuum hose retainers.
- Remove the nuts and position the vacuum control regulator aside. Discard the nuts.
  Torque

  : 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY

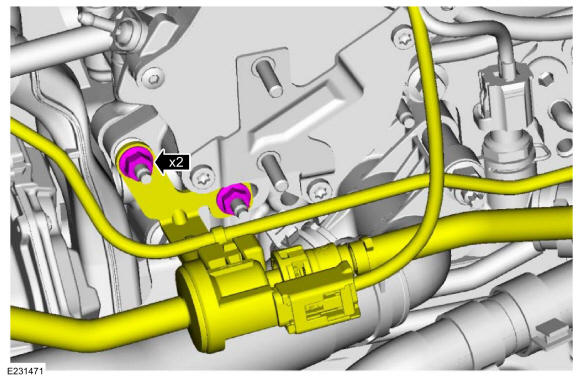

Remove the nuts and position the EVAP purge valve and bracket aside.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.

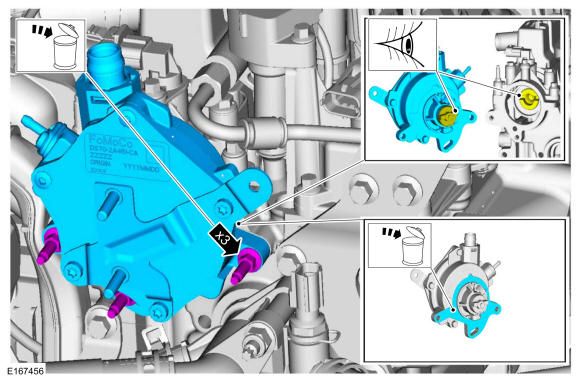

1. Remove the bolts and the brake vacuum pump. Discard the bolts.
  Torque

  : 89 lb.in (10 Nm)
2. Remove and discard the gasket.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the mating surfaces are clean and free of foreign material and thread lock residue is cleaned from the bolt holes.

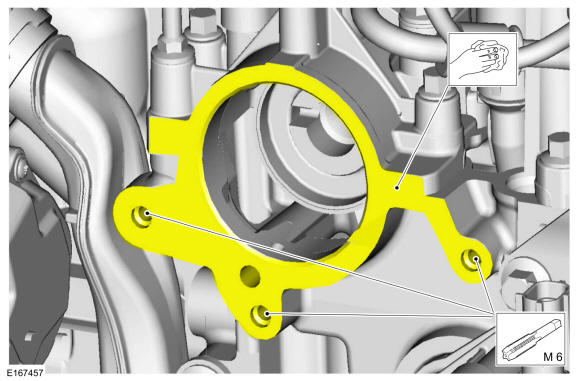

Clean the mating surfaces and tap the bolt holes.

Material

: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
