Power Transfer Unit Vent: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If equipped. Remove the retainers and the underbody shield.
- Remove the PTU heat shield bolts and the heat shield.
- Disconnect the PTU vent hose and position it aside.

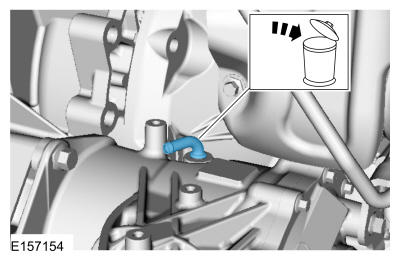

- Remove and discard the PTU vent.
