Power Transfer Unit Vent: Installation

WARNING: This page is about a different variant/trim than selected.

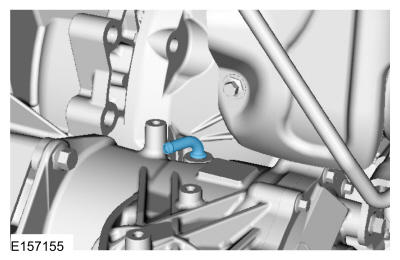

  1. Install a new PTU vent.
    GFD483913Courtesy of FORD MOTOR COMPANY

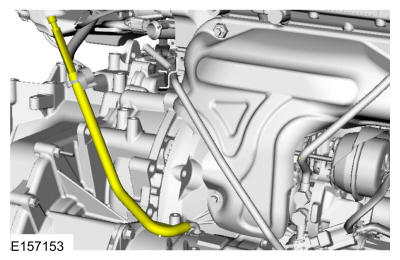

  2. Connect the PTU vent hose.
    GFD483911Courtesy of FORD MOTOR COMPANY

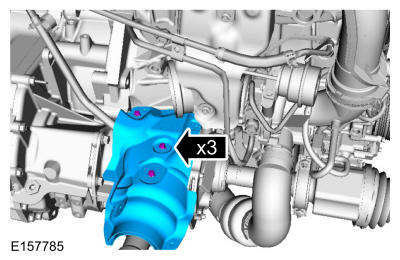

  3. Install the PTU heat shield and heat shield bolts.

    Torque: 97 lb.in (11 Nm)

    GFD483910Courtesy of FORD MOTOR COMPANY

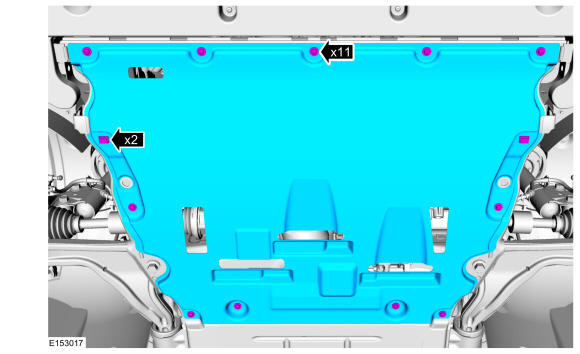

  4. If equipped. Install the underbody shield.
GFD483876Courtesy of FORD MOTOR COMPANY
