Power Transfer Unit Rear Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the PTU/transfer case. Refer to: Power Transfer Unit .
  2. Using the special tool, remove and discard the pinion flange nut. Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.

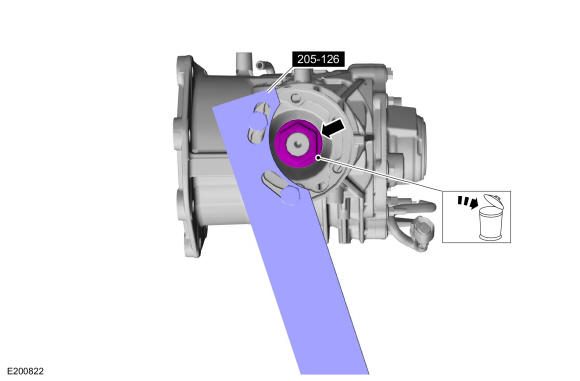

    GFD483904Courtesy of FORD MOTOR COMPANY
    1. Mark the pinion flange and the transfer case for reassembly.
    2. Using the puller, remove the pinion flange. Use the General Equipment: Puller

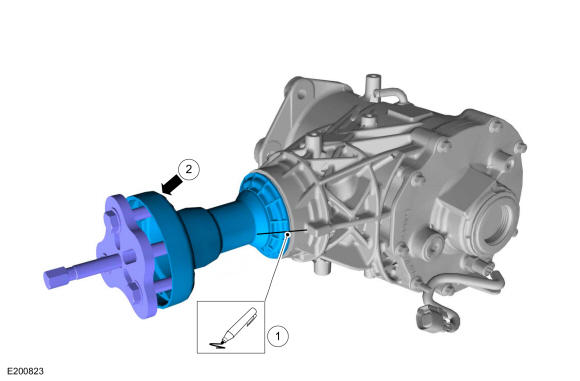

    GFD483905Courtesy of FORD MOTOR COMPANY
  4. Remove and discard the transfer case rear seal.

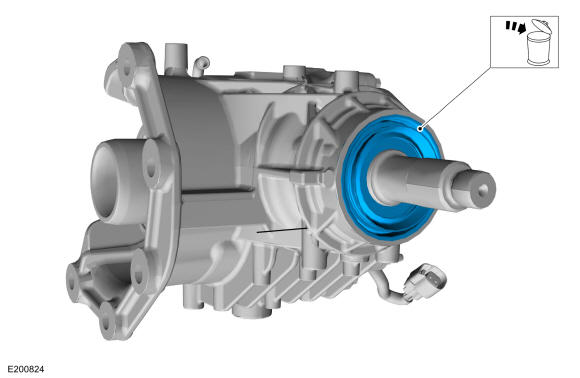

GFD483906Courtesy of FORD MOTOR COMPANY
