Power Transfer Unit Input Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the PTU/transfer case. Refer to: Power Transfer Unit .

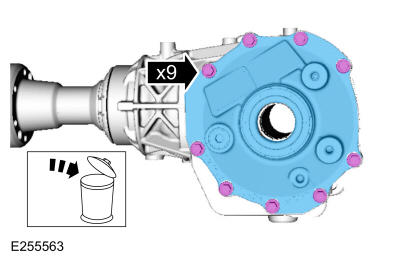

  2. Remove and discard the PTU cover bolts and remove the PTU cover.
    GFD483893Courtesy of FORD MOTOR COMPANY

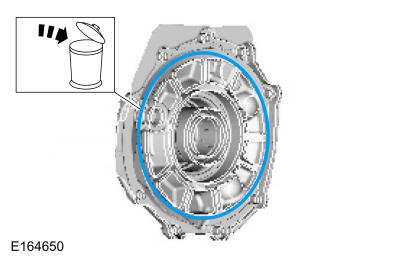

  3. Remove and discard the PTU cover O-ring seal.
    GFD483894Courtesy of FORD MOTOR COMPANY
  4. Remove and discard the RH input shaft seal.
    GFD483895Courtesy of FORD MOTOR COMPANY
  5. Remove the input shaft.
    GFD483896Courtesy of FORD MOTOR COMPANY

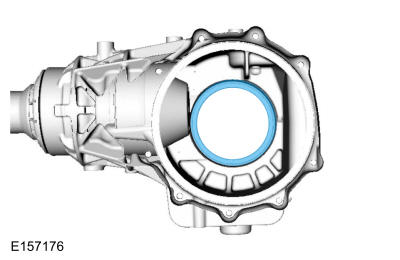

  6. Remove and discard the LH input shaft seal.
GFD483897Courtesy of FORD MOTOR COMPANY
