Power Transfer Unit Draining and Filling
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL | WSL-M2C192-A |
Draining
- With the vehicle in NEUTRAL, position it on hoist. Refer to: Jacking and Lifting - Overview .
- If equipped. Remove the retainers and the underbody shield.

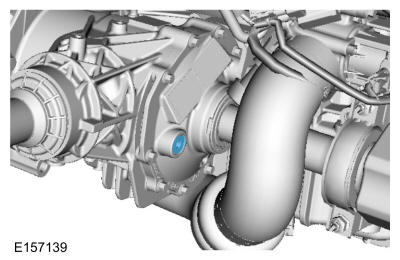

- Remove the PTU drain plug.
- Install the PTU drain plug.
Torque: 33 lb.ft (45 Nm)
Filling
- Remove the PTU fill plug.
- Fill the PTU with clean fluid, level with the fill plug opening.
Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)
- Install the PTU fill plug.
Torque: 33 lb.ft (45 Nm)
- If equipped. Install the underbody shield.
