Four-Wheel Drive Systems - System Operation and Component Description
>>
System Operation
>>
Automatic Torque Coupling Configuration Bar Code Label Location
Automatic Torque Coupling Configuration Bar Code Label Location
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY

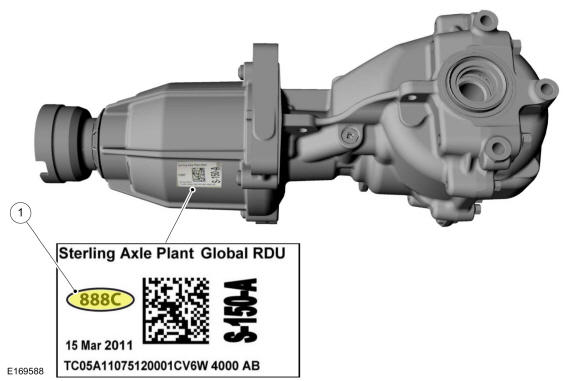

Label Location
Item
Description
1
Active Torque Coupling (ATC) solenoid bar code label
