Side Curtain Airbag: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

If a SRS fault is present, continue to Step 2. Otherwise, turn the ignition off, wait at least one minute and continue to Step 3.
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
Lower the headliner. Refer to: Headliner - Lowering .

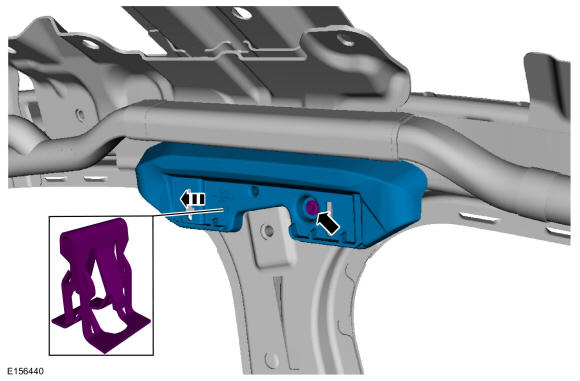

Remove the screw, release the clip and remove the bracket.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

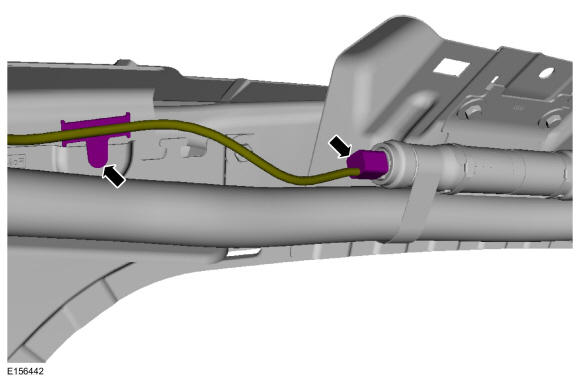

Detach the wire harness retainer and disconnect the side curtain airbag electrical connector.

Courtesy of FORD MOTOR COMPANY

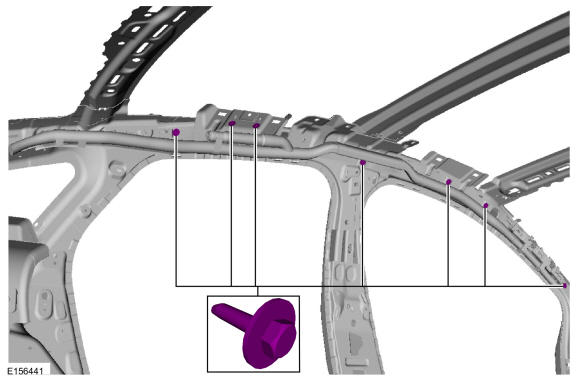

Remove the side curtain airbag screws.
Torque: 80 lb.in (9.0 Nm)

Courtesy of FORD MOTOR COMPANY

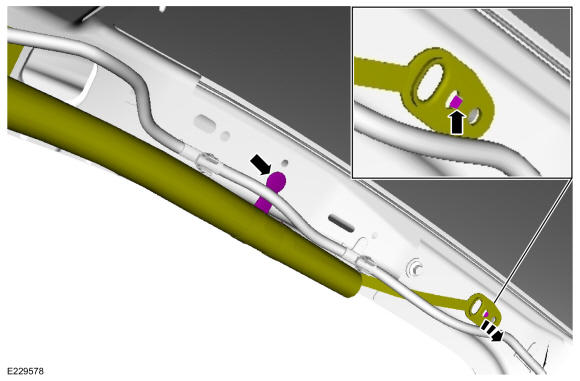

Detach the pin-type retainer and the bracket from the A-pillar.

Courtesy of FORD MOTOR COMPANY

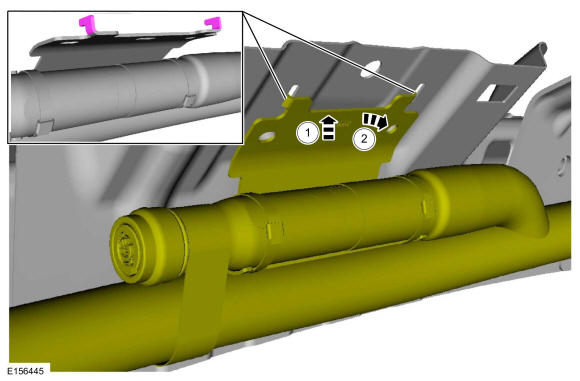

1. Slide the side curtain airbag up and align the bracket tabs to the sheet metal openings.
2. Rotate the top of the side curtain airbag away from the sheet metal and detach each of the brackets.
Courtesy of FORD MOTOR COMPANY

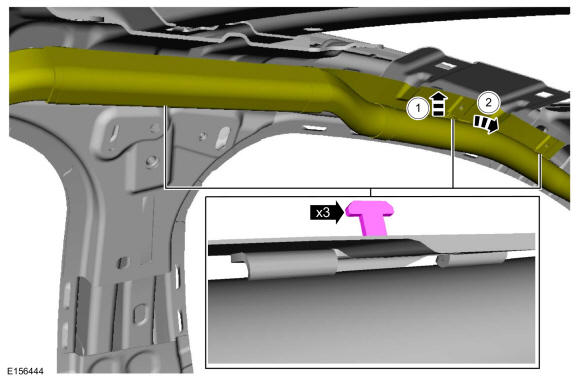

1. Slide the side curtain airbag up and align the bracket tabs to the sheet metal openings.
2. Rotate the top of the side curtain airbag away from the sheet metal and detach the side curtain airbag.
Courtesy of FORD MOTOR COMPANY

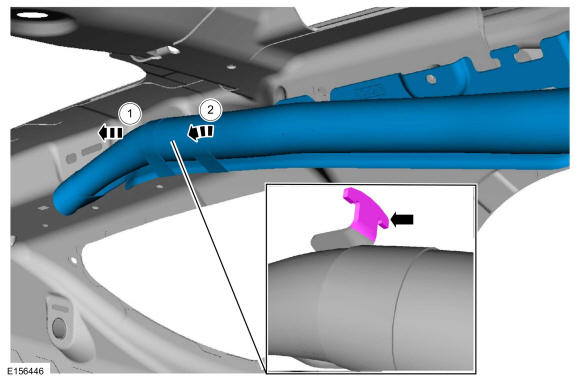

1. Slide the side curtain airbag rearward and align the bracket tab to the sheet metal opening.
2. Rotate the top of the side curtain airbag away from the sheet metal, disengage the tab and remove the side curtain airbag.

Courtesy of FORD MOTOR COMPANY
