Side Airbag: Installation

WARNING: This page is about a different variant/trim than selected.
  1. WARNING: Inspect the seat side airbag, airbag cavity, mounting surface and deployment chute for damage or the presence of foreign material. Remove all foreign material. Install a new side airbag if it is damaged. Install a new deployment chute if the deployment chute is damaged. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.

    To install, reverse the removal procedure.

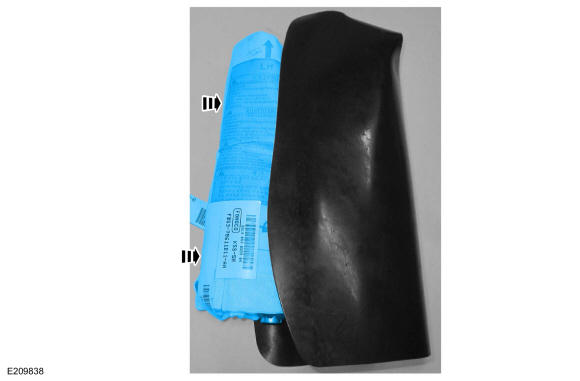

  2. Install the side airbag into the deployment chute.
    GFD485538Courtesy of FORD MOTOR COMPANY
  3. Position the side air bag studs through the deployment chute holes.
GFD485539Courtesy of FORD MOTOR COMPANY
