Passenger Airbag Deactivation (PAD) Indicator: Removal

WARNING: This page is about a different variant/trim than selected.

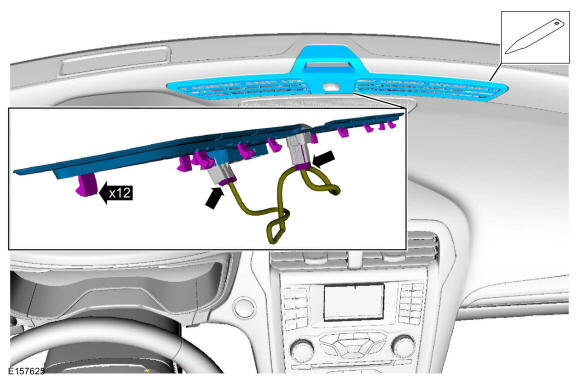

    • Release the tabs and remove the defroster grille panel. Use the General Equipment: Interior Trim Remover

    • Disconnect the electrical connector.

    GFD485520Courtesy of FORD MOTOR COMPANY

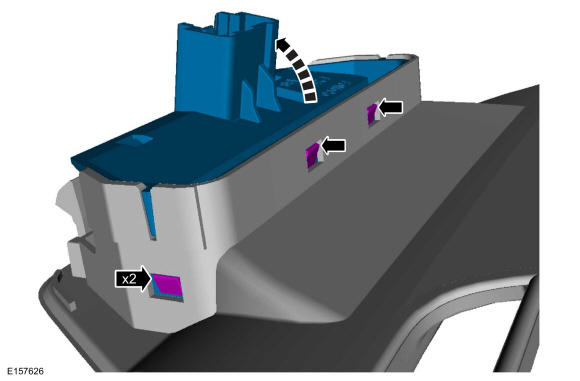

  2. Release the tabs and remove the PAD indicator.
GFD485521Courtesy of FORD MOTOR COMPANY
