Removal And Installation: Clockspring: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
If a SRS fault is present, continue to Step 2. Otherwise, turn the ignition OFF, wait at least one minute and continue to Step 3.
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
-

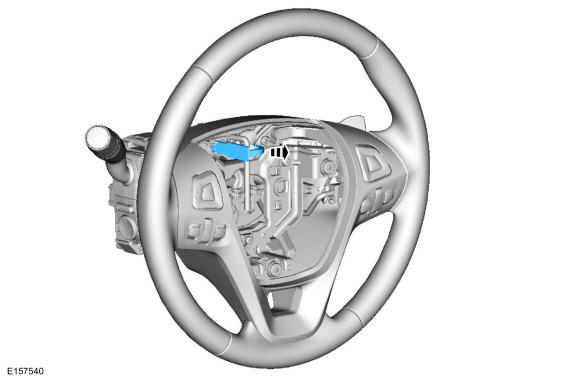

NOTE: To install, remove the anti-rotation key from a new clockspring after installing the steering wheel.
Remove the steering wheel. Refer to: Steering Wheel .
- Remove the steering column shrouds. Refer to: Steering Column Shrouds .

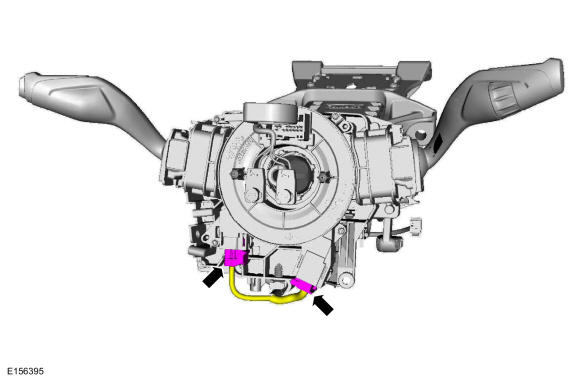

- Disconnect the clockspring electrical connectors.

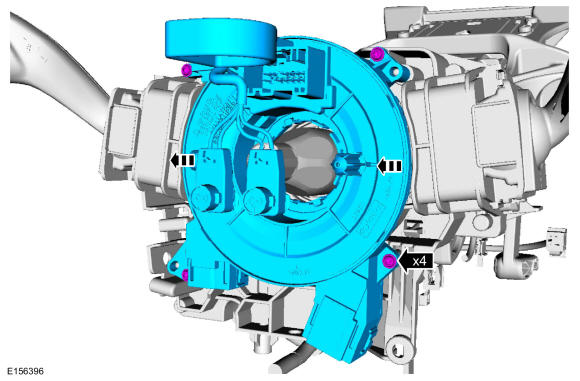

- Remove the screws and the clockspring.
