Rear Brake Caliper Anchor Plate: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Steps in the removal procedure may contain installation details.
  1. Remove the brake pads. Refer to: Brake Pads .

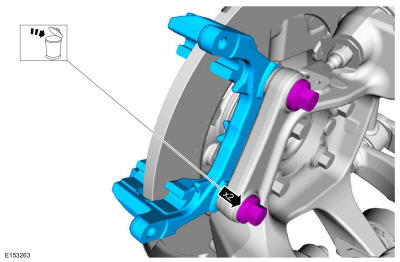

  2. Remove the bolts and the brake caliper anchor plate. Discard the bolts.

    Torque

    : 76 lb.ft (103 Nm)

GFD479155Courtesy of FORD MOTOR COMPANY
