Front Brake Flexible Hose: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this section, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- Remove the wheel ant tire. Refer to: Wheel and Tire .

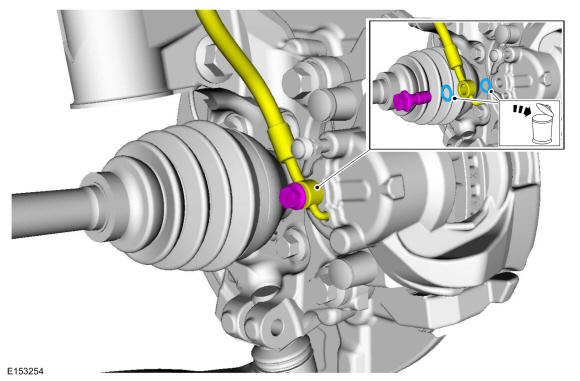

- Remove the flow bolt and detach the front brake hose. Discard the washers.
Torque
: 18 lb.ft (25 Nm)
-

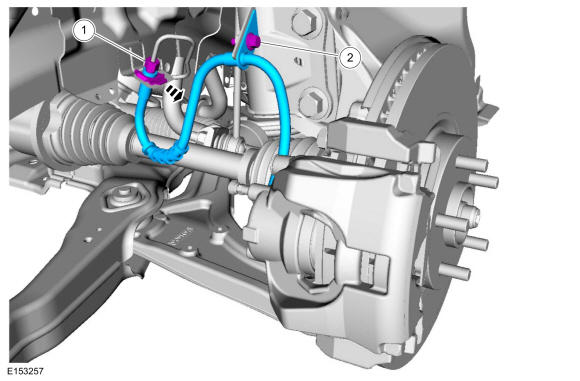

- Disconnect the brake tube fitting.
Torque
: 159 lb.in (18 Nm)
- Remove the brake flexible hose bracket bolt, the clip and the brake flexible hose.
Torque
: 159 lb.in (18 Nm)
- Disconnect the brake tube fitting.
