Front Brake Caliper: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: Brake pads with adhesive on the insulator are one-time use only. When the brake pads are separated from the brake caliper, new brake pads must be installed to prevent brake noise and shudder.
Remove and discard the front brake pads Refer to: Brake Pads .

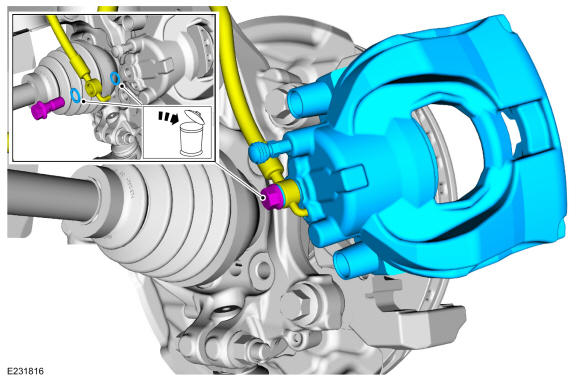

- Remove The brake caliper flow bolt, washers and the brake caliper. Discard the washers.
Torque
: 18 lb.ft (25 Nm)
