Front Brake Caliper Anchor Plate: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .
Remove and discard the brake caliper spring.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

Remove the covers, the guide pins and position the brake caliper aside.

Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

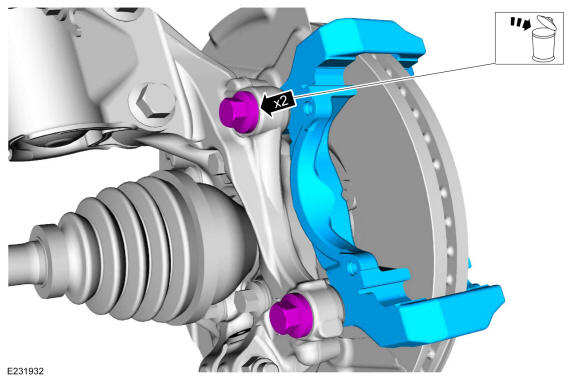

Remove the bolts and the brake caliper anchor plate. Discard the bolts.
Torque

: 122 lb.ft (165 Nm)

Courtesy of FORD MOTOR COMPANY
