Wheel Studs: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub .

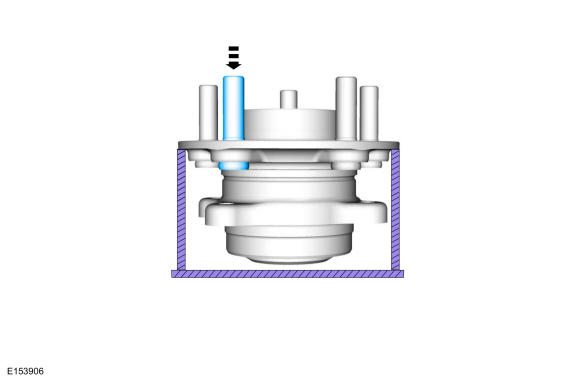

  2. Press the wheel stud from the wheel bearing and wheel hub. Use the General Equipment: Hydraulic Press
    GFD478936Courtesy of FORD MOTOR COMPANY

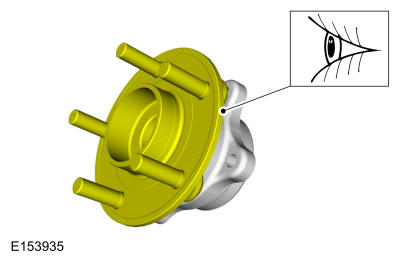

  3. Inspect the wheel bearing and wheel hub for damage. Replace as necessary.
GFD478937Courtesy of FORD MOTOR COMPANY
