Wheel Knuckle: Installation

WARNING: This page is about a different variant/trim than selected.

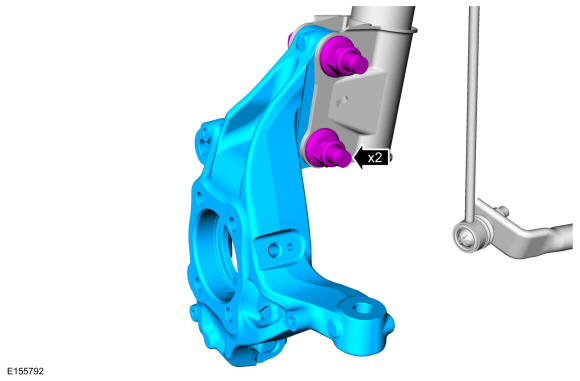

Install the wheel knuckle and install the new front strut and spring assembly-to-wheel knuckle bolts and nuts.
Torque

: 173 lb.ft (235 Nm)

Courtesy of FORD MOTOR COMPANY

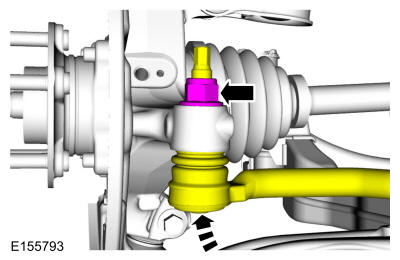

Attach the tie rod end to the wheel knuckle and install the new tie rod end nut.
Torque

: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY

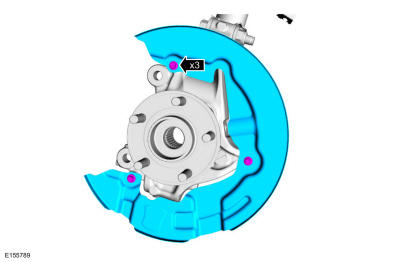

Install the brake disc shield and the brake disc shield retainers.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

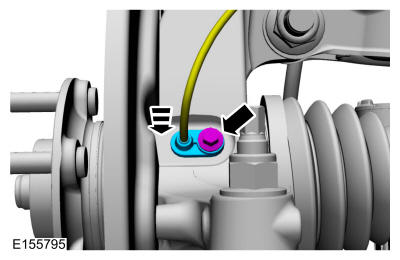

Position the wheel speed sensor and install the wheel speed sensor bolt.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub .
Check and if necessary adjust front camber. Refer to: Front Camber Adjustment .
