Front Stabilizer Bar: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
  1. Remove the front subframe. Refer to: Front Subframe - 2.7L EcoBoost (238kW/324PS) .

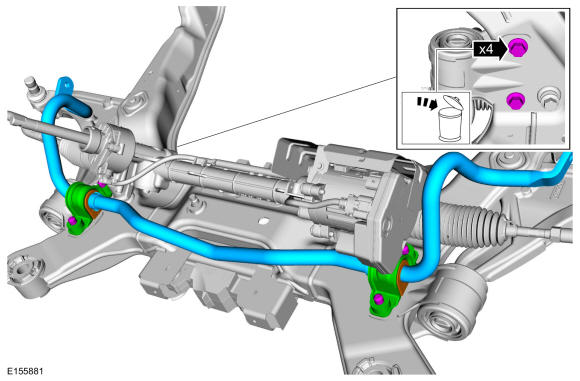

  2. Remove and discard the front stabilizer bar bracket bolts and remove the front stabilizer bar.
GFD478918Courtesy of FORD MOTOR COMPANY
