Front Stabilizer Bar Bushing: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

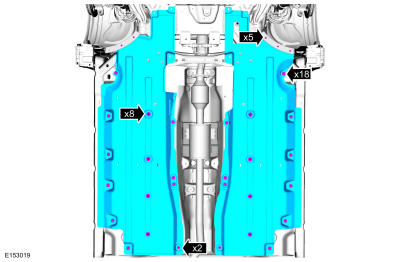

If equipped. Remove the 11 screws and 2 clips and remove the front under body shield.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the 2 screws and remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the retainers and shields as needed.

Courtesy of FORD MOTOR COMPANY
NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

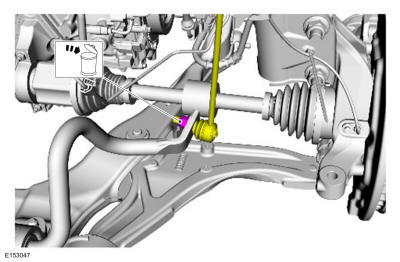

On both sides. Remove and discard the stabilizer bar link lower nut and position aside the stabilizer bar link.

Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

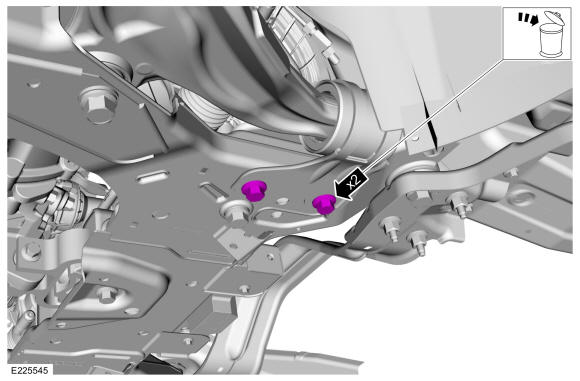

On both sides. Remove and discard the front stabilizer bar bracket bolts.
Torque

: 122 lb.ft (165 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The front stabilizer bar must be positioned towards the rear of the vehicle to gain access to the front stabilizer bar bushings.

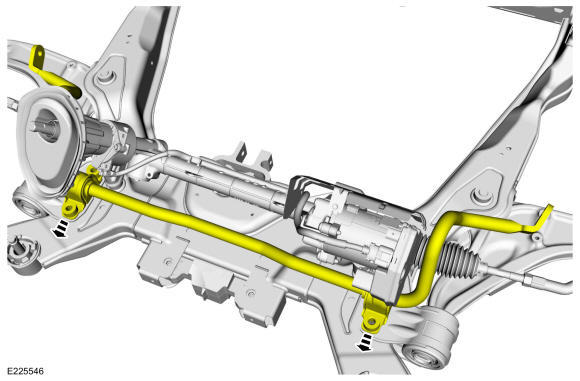

Move the front stabilizer bar towards the rear of the vehicle.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use any lubrication on the stabilizer bar or the bushings or damage to the bushings may occur.

NOTE: Stabilizer bar bushings must be installed with slits facing the rear of the vehicle.

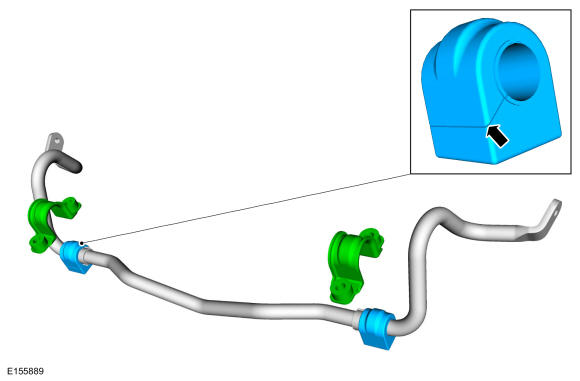

Remove the front stabilizer bar bushing brackets and the front stabilizer bar bushings.

Courtesy of FORD MOTOR COMPANY
