Wheel Bearing and Wheel Hub - FWD: Installation

WARNING: This page is about a different variant/trim than selected.

Vehicles with bearing mounted wheel speed sensor

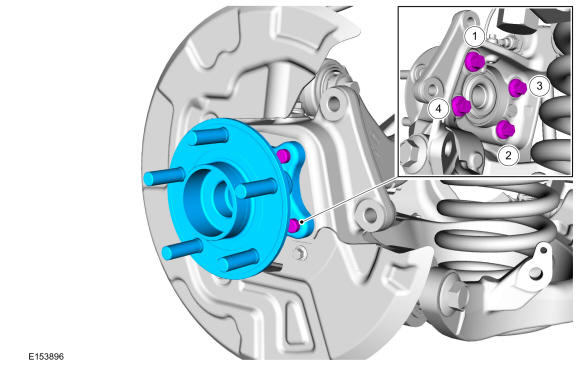

Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.
Torque: 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY

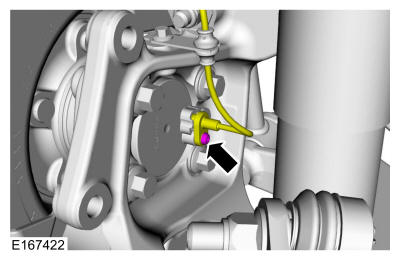

Position the wheel speed sensor and install the wheel speed sensor screw.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with knuckle mounted wheel speed sensor

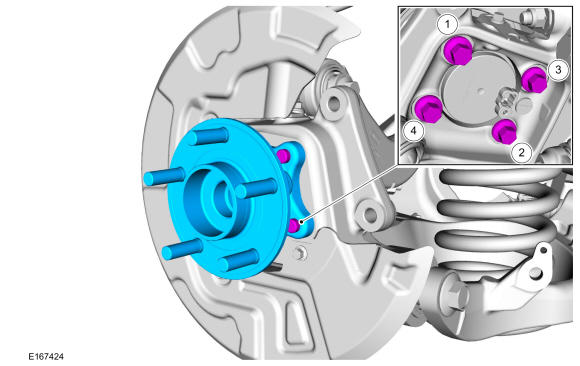

Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.
Torque: 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles
Install the brake disc. Refer to: Brake Disc .
