Wheel Bearing and Wheel Hub - AWD: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
- Remove the wheel and tire. Refer to: Wheel and Tire .

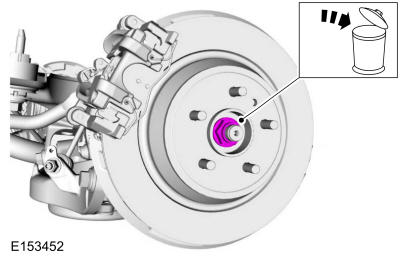

- Remove and discard the wheel hub nut.

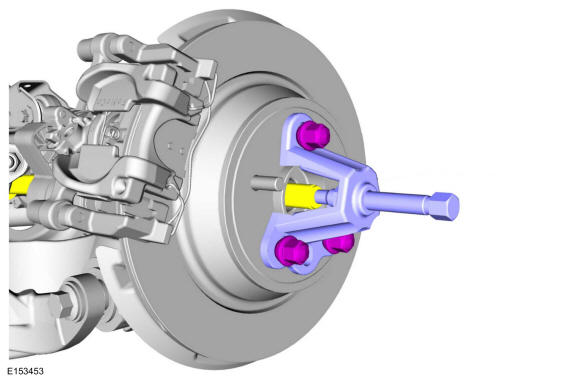

- Install the special tool and press the halfshaft from the rear wheel bearing and wheel hub. Use Special Service Tool: 205-D070 (D93P-1175-B) Remover, Front Wheel Hub.
- Remove the brake disc. Refer to: Brake Disc .

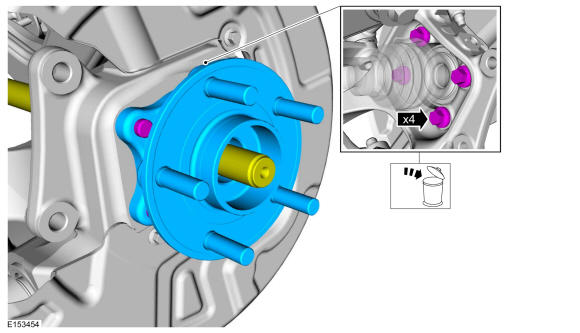

- Remove and discard the wheel bearing and wheel hub retainers and remove the wheel bearing and wheel hub.
