Wheel Bearing and Wheel Hub - AWD: Installation
WARNING: This page is about a different variant/trim than selected.

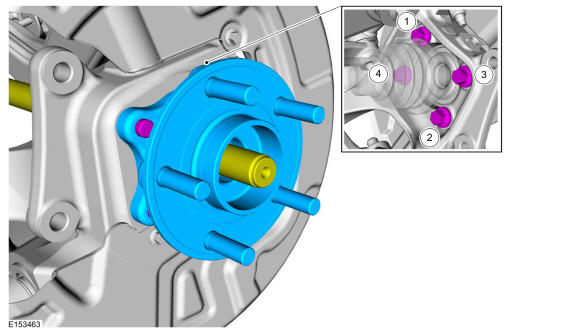

- Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.
Torque: 98 lb.ft (133 Nm)
- Install the brake disc. Refer to: Brake Disc .
-

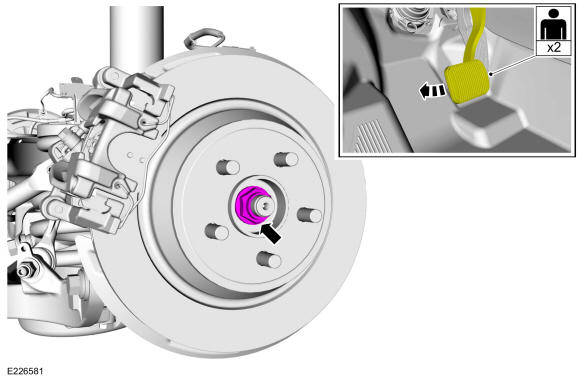

NOTE: Apply the brake to keep the halfshaft from rotating.
Install the new wheel hub nut.
Torque: 148 lb.ft (200 Nm)
- Install the wheel and tire. Refer to: Wheel and Tire .
