Rear Stabilizer Bar: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Do not use power tools to remove or install the stabilizer bar link nuts. Damage to the stabilizer bar link ball joints and boots may occur.

NOTE: AWD vehicle shown, FWD vehicle similar.

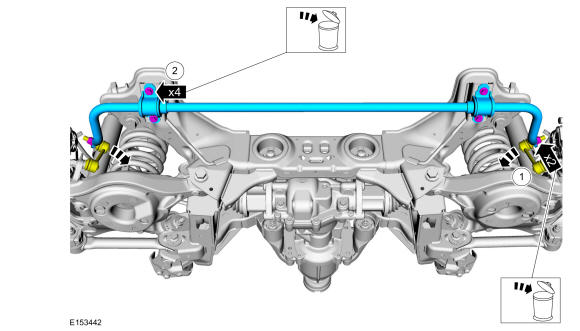

1. Remove and discard the rear stabilizer bar link upper nuts and disconnect the rear stabilizer bar links from the rear stabilizer bar.
2. Remove and discard the rear stabilizer bar bracket bolts and remove the rear stabilizer bar.
Courtesy of FORD MOTOR COMPANY
NOTE: Do not use any lubrication on the stabilizer bar or the bushings or damage to the bushings may occur.

NOTE: Stabilizer bar bushings must be installed with slits facing the front of the vehicle.

Inspect and, if necessary, install new stabilizer bar bushings.

Courtesy of FORD MOTOR COMPANY
