Rear Stabilizer Bar: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Apply water to the brackets to aid in installation.

Press the rear stabilizer bar brackets in place onto the rear stabilizer bar bushings.

Courtesy of FORD MOTOR COMPANY

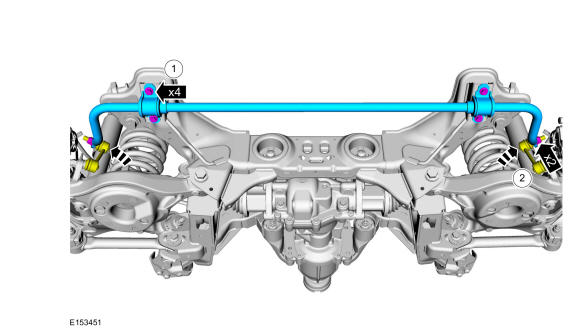

1. Position the rear stabilizer bar and install the new rear stabilizer bar bracket bolts.
  Torque: 52 lb.ft (70 Nm)
2. Position the rear stabilizer bar links and install the new rear stabilizer bar link nuts.
  Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
