Lower Arm: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Refer to: Wheel and Tire .
NOTE: The rear suspension height sensor must be disconnected from the lower control arm prior to servicing suspension components or damage to the suspension height sensor and/or the vehicle dynamic suspension system may occur. The sensor will need to be recalibrated after reassembly.

Remove the rear height sensor arm bracket bolt and position the rear height sensor arm bracket aside.

Courtesy of FORD MOTOR COMPANY

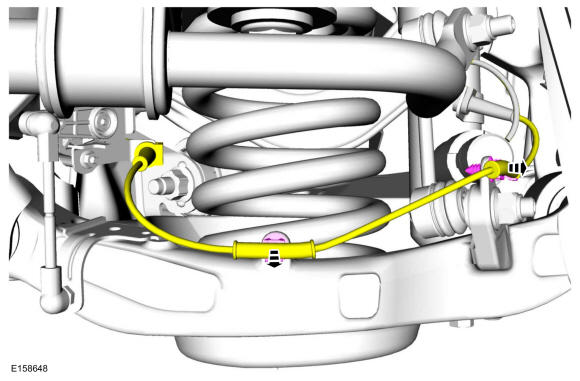

Unclip the 2 rear height sensor wire harness retaining clips.

Courtesy of FORD MOTOR COMPANY
NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

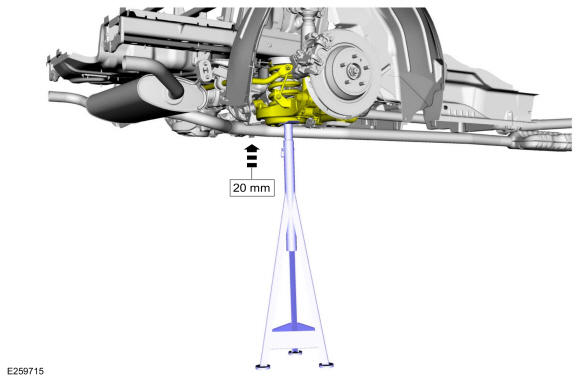

Raise the suspension approximately 20mm from rebound condition. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

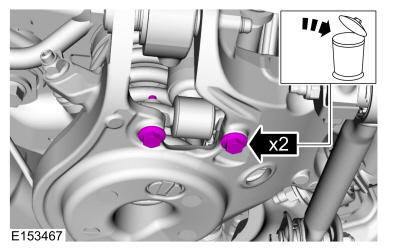

Remove and discard the rear shock absorber lower bolts.

Courtesy of FORD MOTOR COMPANY
1. Remove the lower arm vertical link-to-lower arm bolt.
2. Remove the toe link-to-wheel knuckle bolt and flagnut.
Courtesy of FORD MOTOR COMPANY

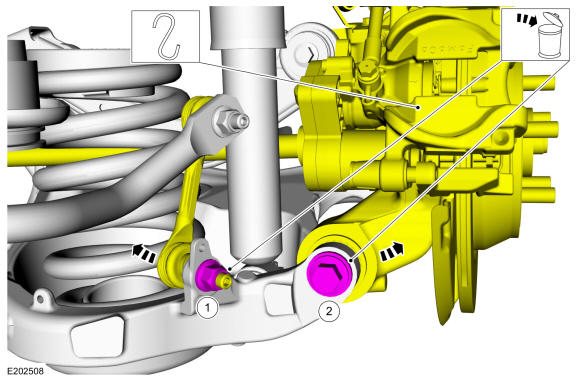

NOTE: Make sure that the knuckle is supported with suitable retaining straps.
1. Remove and discard the rear stabilizer bar link lower nut and position the rear stabilizer bar link aside.
2. Remove and discard lower arm-to-wheel knuckle bolt and separate the wheel knuckle from the lower arm.
Courtesy of FORD MOTOR COMPANY

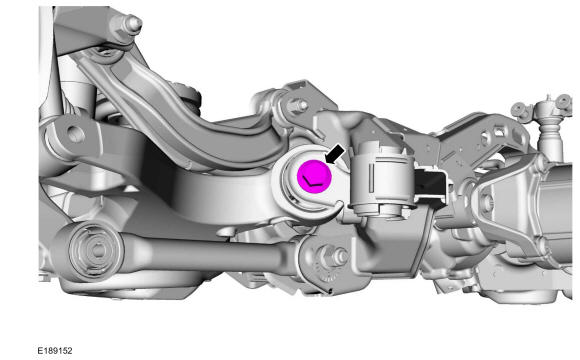

Remove the forward lower arm-to-subframe bolt.

Courtesy of FORD MOTOR COMPANY

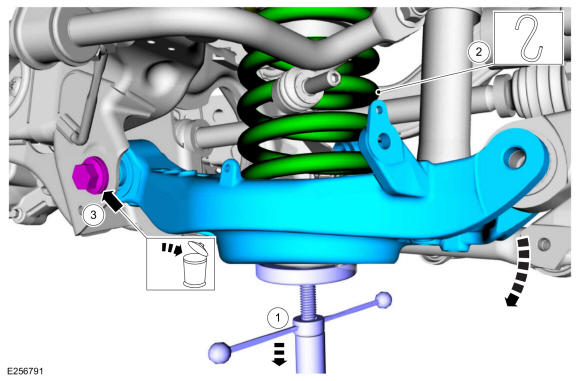

NOTE: Take extra care when handling a compressed spring. Failure to follow this instruction may result in personal injury.

NOTE: Do not allow the rear spring to fall.
1. Lower the suspension to release the spring compression.
2. Remove the spring by lowering the lower arm and position aside.
3. Remove and discard the lower arm-to-frame rearward bolt and remove the lower arm Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
