Late Build Vehicles

WARNING: This page is about a different variant/trim than selected.

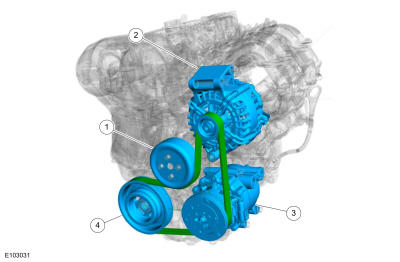

Fig 1: Accessory Drive Belt Routing & Component Location (Late Build Vehicles)
GFD482016Courtesy of FORD MOTOR COMPANY
Item Description
1 Coolant pump pulley
2 Generator.
3 Air conditioning compressor
4 Crankshaft pulley / vibration damper
