Front Wheel Speed Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the wheel and tire. Refer to: Wheel and Tire .

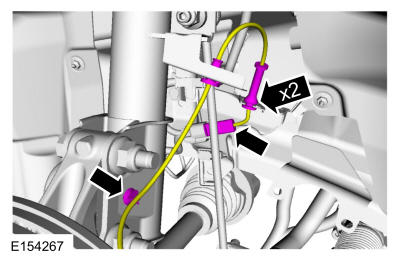

- Disconnect the electrical connector and detach the wiring retainers.
-
NOTE: Make sure that the sensor housing is clean and free of foreign material.

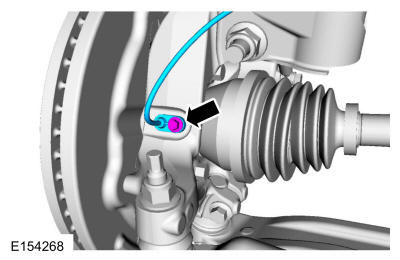

Remove the bolt and the front wheel speed sensor.
Torque: 80 lb.in (9 Nm)
