Muffler and Tailpipe: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

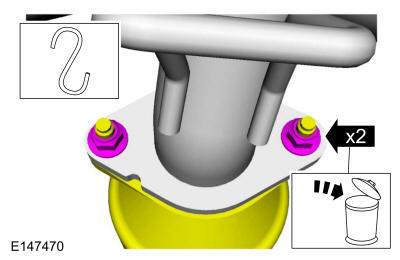

- Remove and discard the nuts.
  Torque: 35 lb.ft (48 Nm)
- Position aside the muffler and tailpipe.
Courtesy of FORD MOTOR COMPANY
Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY
Detach the exhaust isolators hangers and remove the muffler and tailpipe assembly.

Courtesy of FORD MOTOR COMPANY
